Sodick H530D - TFT-Ersatzmonitor
12" TFT Industriemonitor als Ersatz für den 14" CRT Monitor verbaut in Sodick H530DEmpfänger :
* Pflichtfelder
oder Abbrechen
Sodick H530D - TFT-Ersatzmonitor
12" TFT Industriemonitor als Ersatz für den 14" CRT Monitor verbaut in Sodick H530DFor questions regarding an order, thank you use the contact form
* Required fields
Cancel or

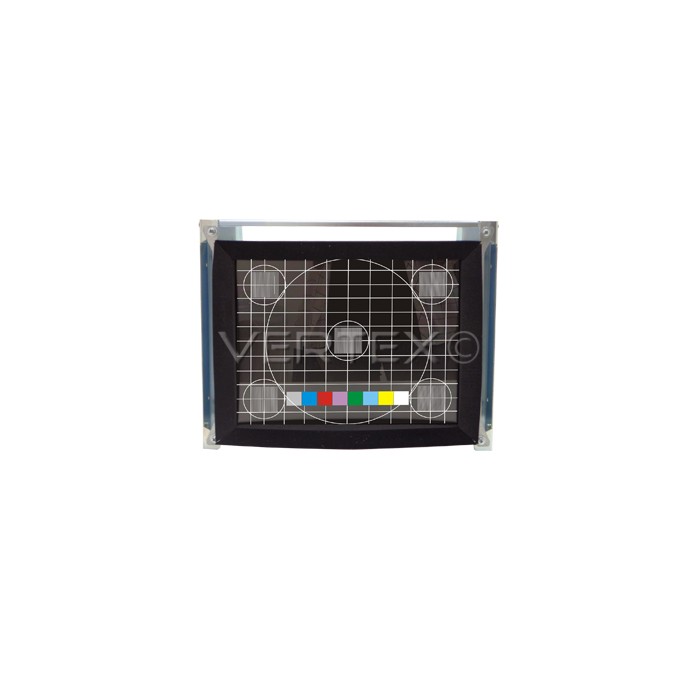

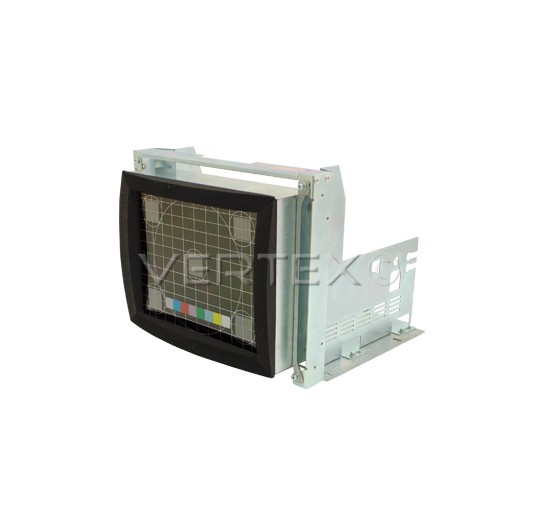

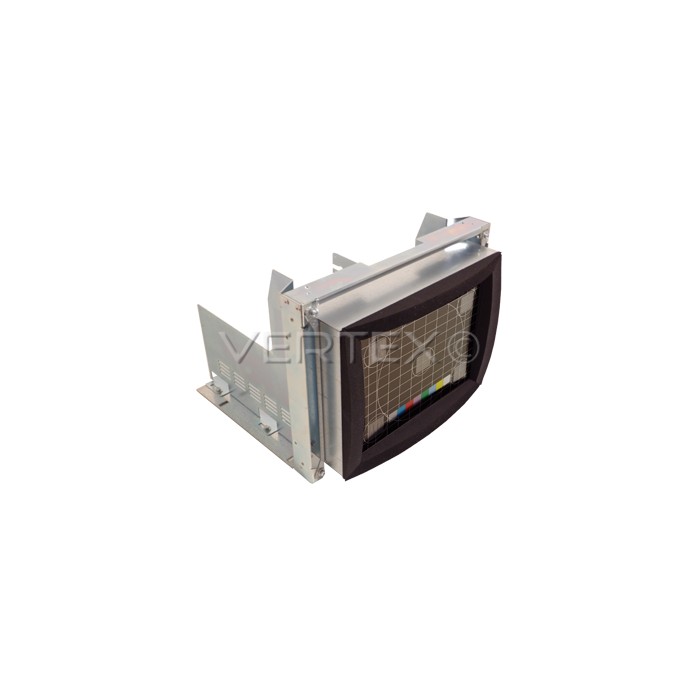

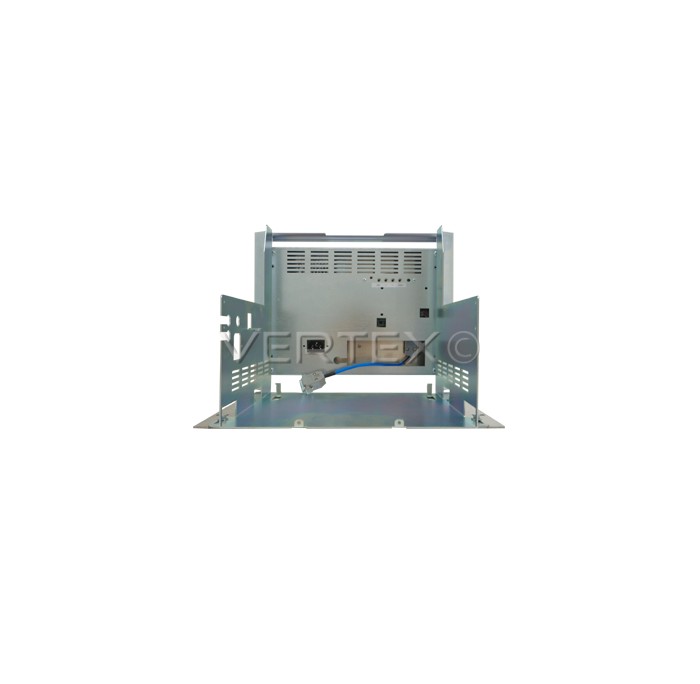

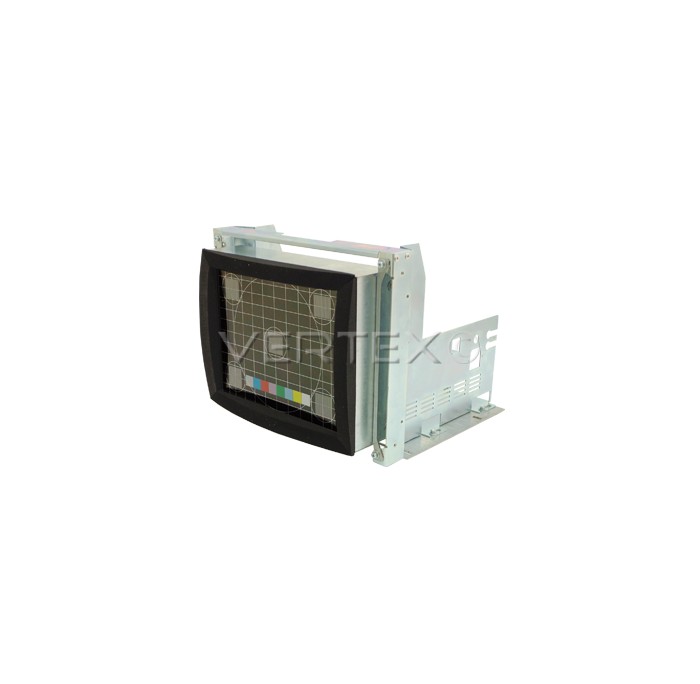

This 12“ TFT monitor has been developed as a replacement for the 14“ CRT Monitor mounted in Sodick H530D.
Our TFT is a Plug & Play solution, that means it is 100% compatible on the electrical and mechanical side.
This allows a quick and easy replacing without a specific technical knowledge and tooling.
Technical data: |
|
Operator panel / CNC |
Sodick H530D |
Display |
12“ TFT LCD active matrix / 800x600 |
Model Code |
HITACHI mod. CD1472D1M 2 e mod. CD1482D1M2-M / SHARP mod. AIQA8DSP40 / MITSUBISHI mod. CD1472D1M2-M / KME 26S14019C |
Brightness |
300 cd/m2 |
Viewing angle |
140° H - 110° V |
Frequency range |
15-45 kHz horizontal, 50-75 Hz vertikal |
Connector |
SUB-D 15 M |
Menu settings |
Via OSD (On Screen Display) |
Front panel |
Frontal Lexan Protection |
Mechanical dimension |
100% compatible to the original |
Operating voltage |
100 - 240 VAC |
Operating temperature |
-10°C to 55°C |
Manufactured according to |
EN55022, EN55024 |
|
|
Product code: |
TOI12LB1-B302 |
