CO8GW72A2-ESA
New
Availability date:
Esa GV TRIA 4000 - CRT-Ersatzmonitor
8" CRT Industriemonitor als Ersatz für den 8" CRT Monochrom-Monitor verbaut in Esa GV TRIA 4000Empfänger :
* Pflichtfelder
oder Abbrechen
Esa GV TRIA 4000 - CRT-Ersatzmonitor
8" CRT Industriemonitor als Ersatz für den 8" CRT Monochrom-Monitor verbaut in Esa GV TRIA 4000For questions regarding an order, thank you use the contact form
* Required fields
Cancel or

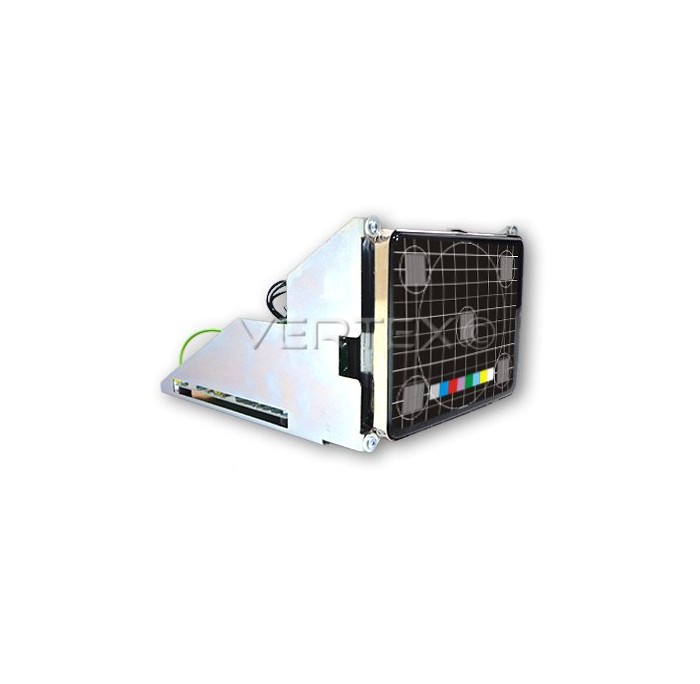

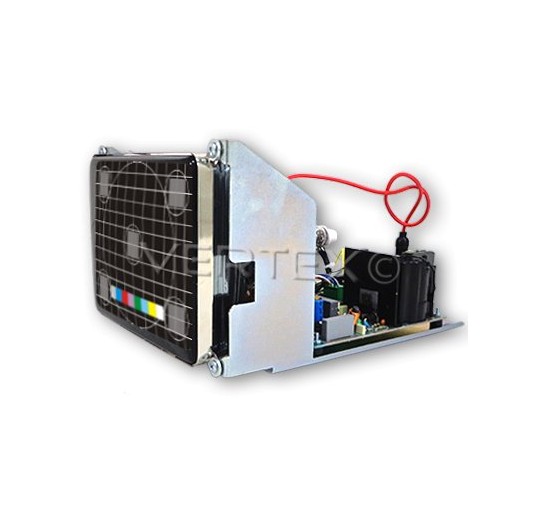

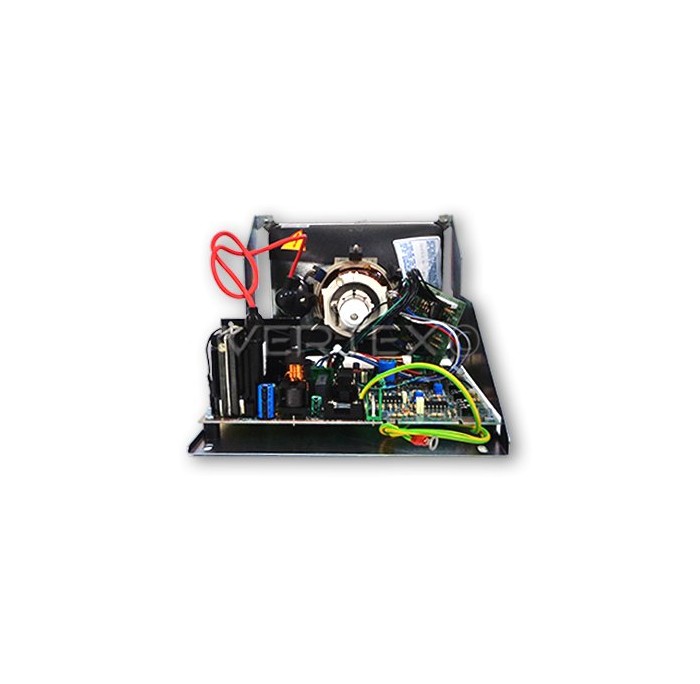

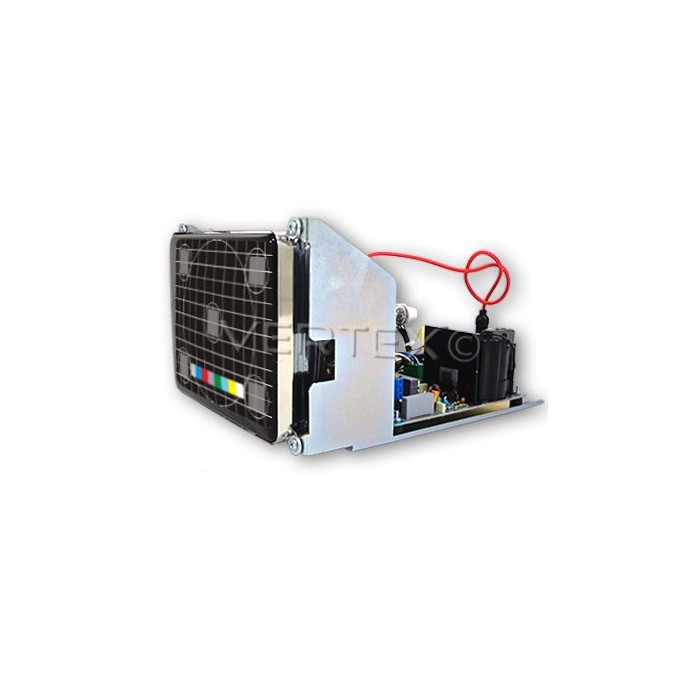

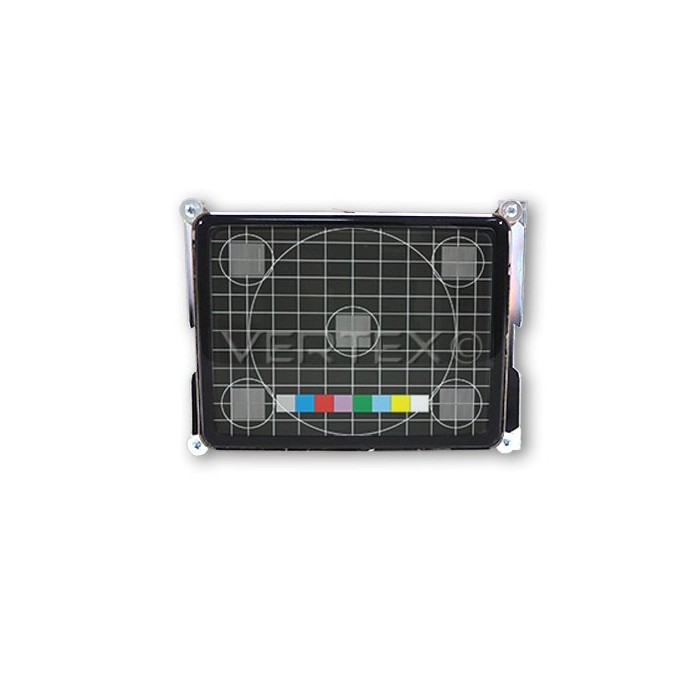

This 8“ CRT monitor has been developed as a replacement for the 8“ CRT Monochrome Monitor mounted in Esa GV TRIA 4000.
Our CRT is a Plug & Play solution, that means it is 100% compatible on the electrical and mechanical side.
This allows a quick and easy replacing without a specific technical knowledge and tooling.
Technical data: |
|
Operator panel / CNC |
Esa GV TRIA 4000 |
Original Monitor Code |
SL5018 |
Display |
8“ CRT |
Frequency range |
15-45 kHz horizontal, 50-75 Hz vertikal |
Connector |
CARD EDGE 10 Pin |
Mechanical dimension |
100% compatible to the original |
Operating voltage |
12 Vdc |
Operating temperature |
-10°C to 55°C |
Manufactured according to |
EN55022, EN55024 |
|
|
Product code: |
CO8GW72A2-ESA |
