Negri - Bossi Dimigraphic 90 - TFT-Ersatzmonitor
TOI10LB1-B127
New
More info

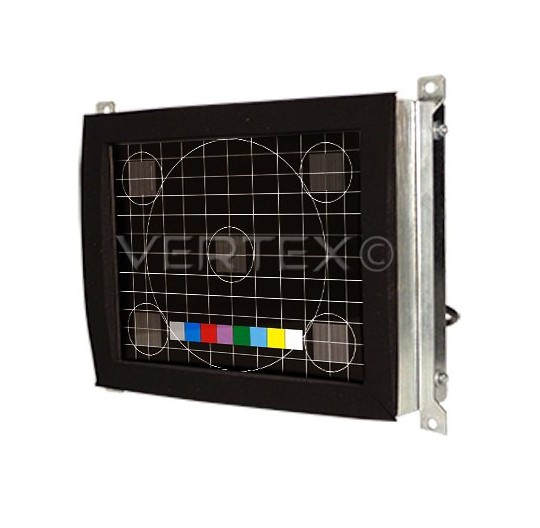

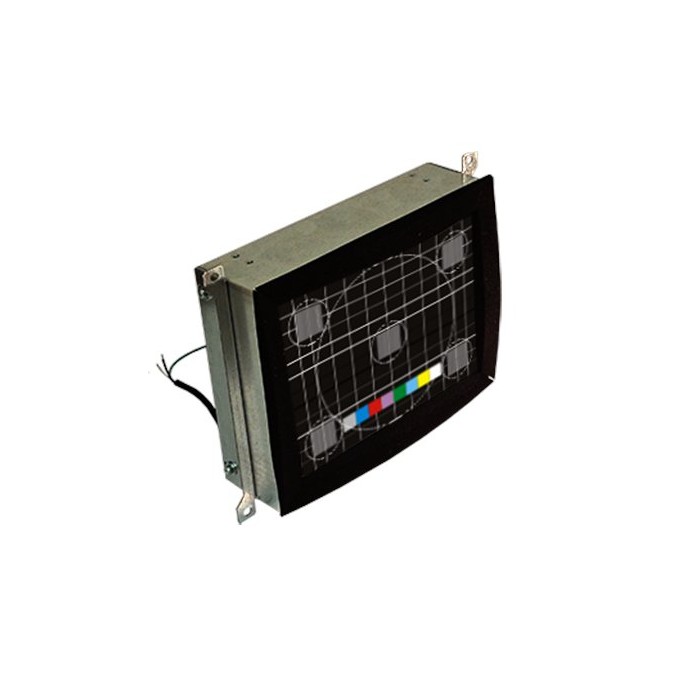

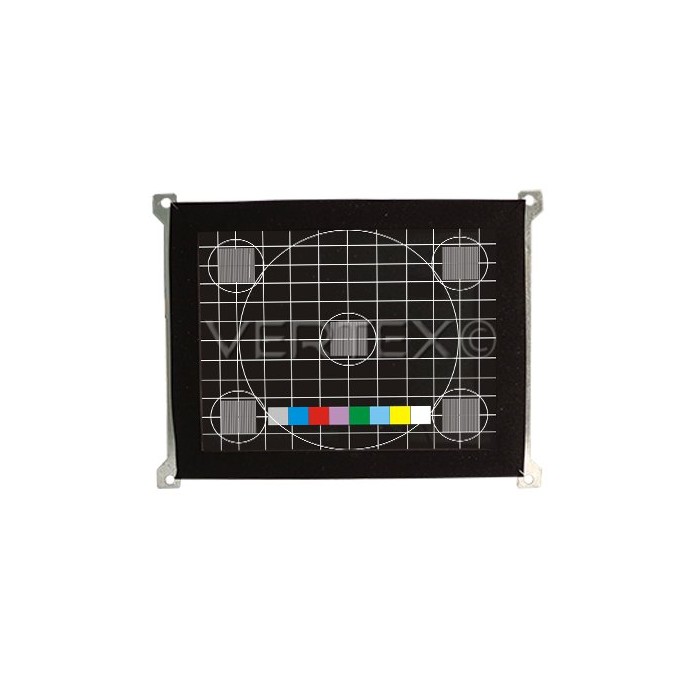

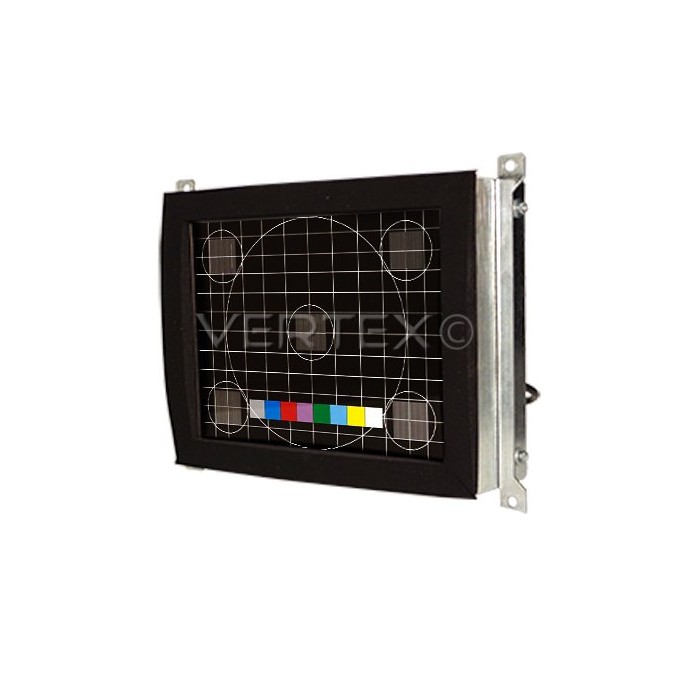

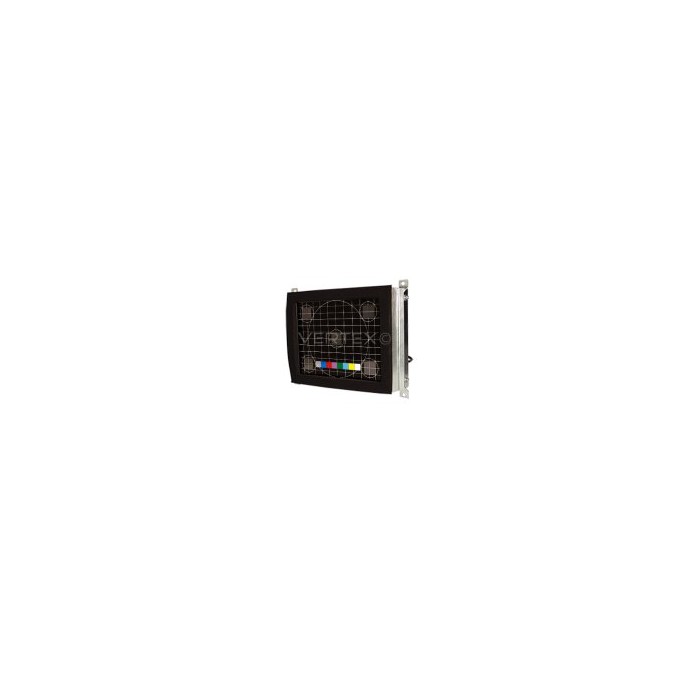

This 10“ TFT monitor has been developed as a replacement for the 12“ CRT Monochrome Monitor mounted in Negri - Bossi Dimigraphic 90.
Our TFT is a Plug & Play solution, that means it is 100% compatible on the electrical and mechanical side.
This allows a quick and easy replacing without a specific technical knowledge and tooling.
|
Technical data: |
|
|
Operator panel / CNC |
Negri - Bossi Dimigraphic 90 |
|
Original Monitor Code |
CLERICI AUTOMAZIONE CF1219 M1/C |
|
Display |
10“ TFT LCD active matrix / 800x600 |
|
Brightness |
300 cd/m2 |
|
Viewing angle |
120° H - 90° V |
|
Frequency range |
15-45 KHz horizontal, 50-75 KHz vertikal |
|

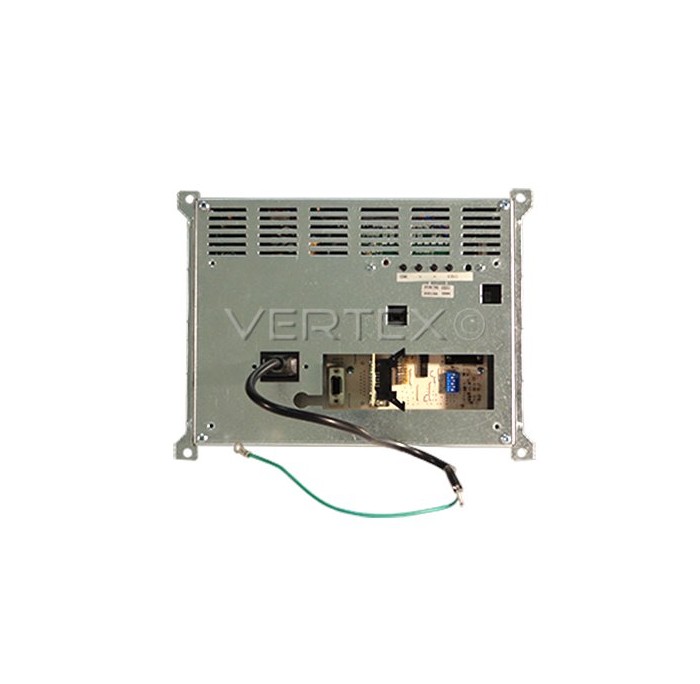

Connector |
SUB-D 9 F / SUB-D 15 F |
|
Menu settings |
Via OSD (On Screen Display) |
|
Front panel |
Frontal Lexan Protection |
|
Mechanical dimension |
100% compatible to the original |
|
Operating voltage |
100 - 240 Vac |
|
Operating temperature |
-10°C to 55°C |
|
Manufactured according to |
EN55022, EN55024 |
|
|
|
|
Product code: |
TOI10LB1-B127 |
