Motorola M1000-100 - TFT-Ersatzmonitor
5" TFT Industriemonitor als Ersatz für den 7" CRT Farbmonitor verbaut in Motorola M1000-100Empfänger :
* Pflichtfelder
oder Abbrechen
Motorola M1000-100 - TFT-Ersatzmonitor
5" TFT Industriemonitor als Ersatz für den 7" CRT Farbmonitor verbaut in Motorola M1000-100For questions regarding an order, thank you use the contact form
* Required fields
Cancel or

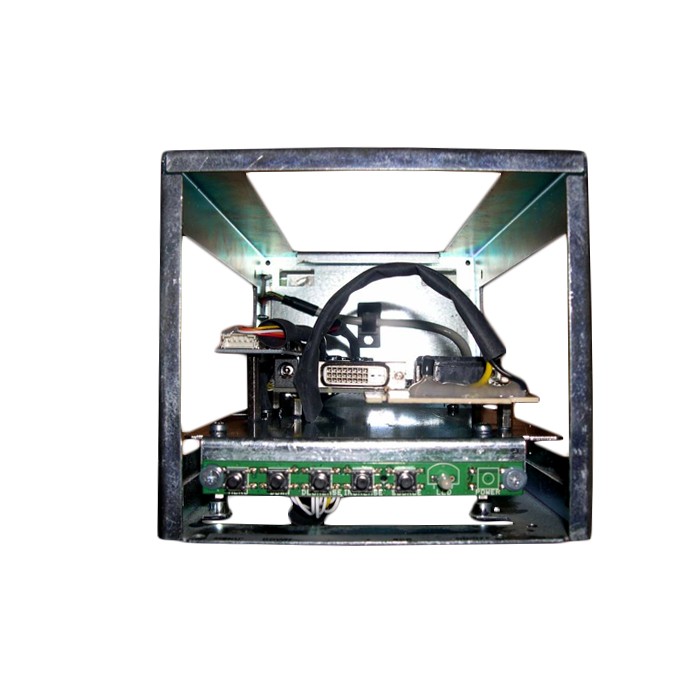

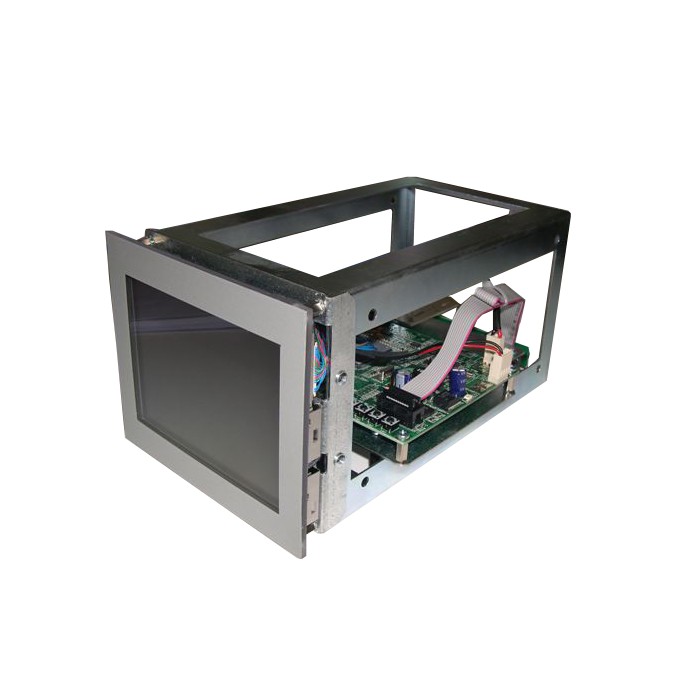

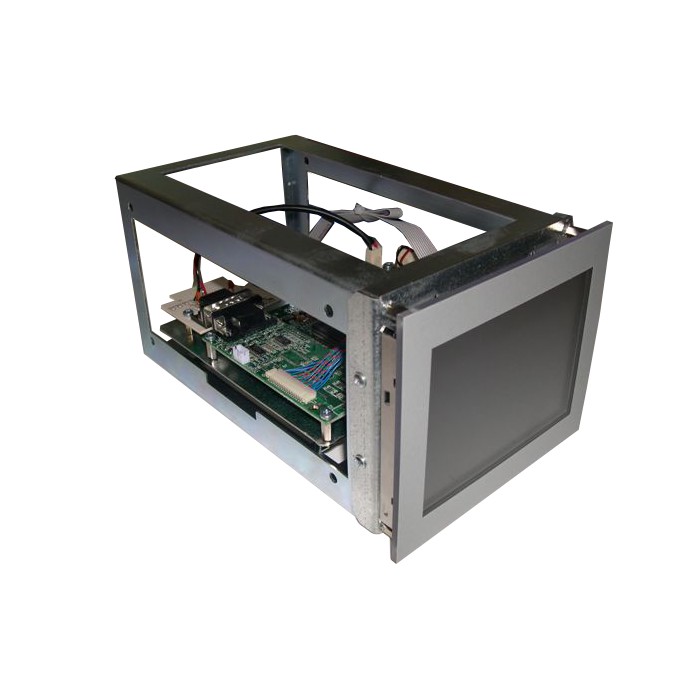

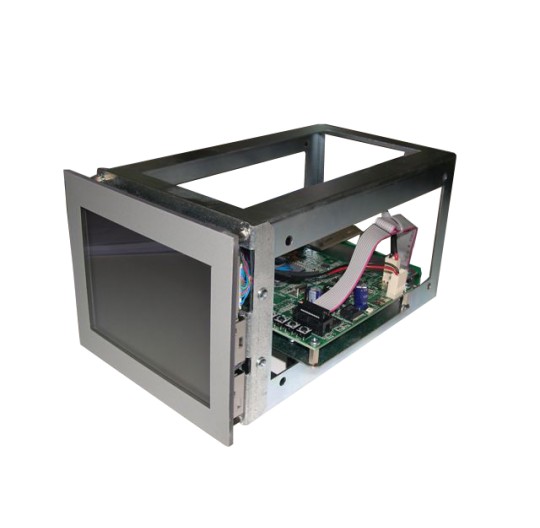

This 5“ TFT monitor has been developed as a replacement for the 7“ CRT Color Monitor mounted in Motorola M1000-100.
Our TFT is a Plug & Play solution, that means it is 100% compatible on the electrical and mechanical side.
This allows a quick and easy replacing without a specific technical knowledge and tooling.
Technical data: |
|
Operator panel / CNC |
Motorola M1000-100 |
Display |
5“ TFT LCD active matrix / 800x600 |
Brightness |
300 cd/m2 |
Viewing angle |
140° H - 120° V |
Frequency range |
15-45 kHz horizontal, 50-75 Hz vertikal |
Connector |
CARD EDGE |
Menu settings |
Via OSD (On Screen Display) |
Front panel |
Frontal Lexan Protection |
Mechanical dimension |
100% compatible to the original |
Operating voltage |
100 - 240 VAC |
Operating temperature |
-10°C to 55°C |
Manufactured according to |
EN55022, EN55024 |
|
|
Product code: |
TOE5DA2-B381 |
Bisher noch kein Kundenkommentar
