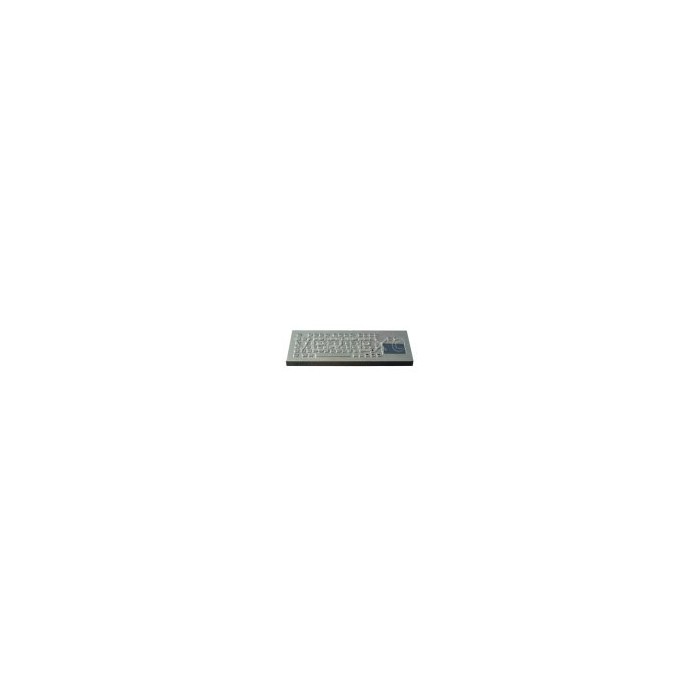

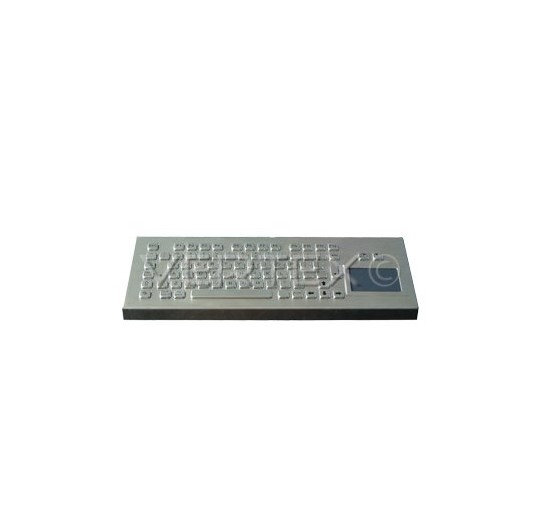

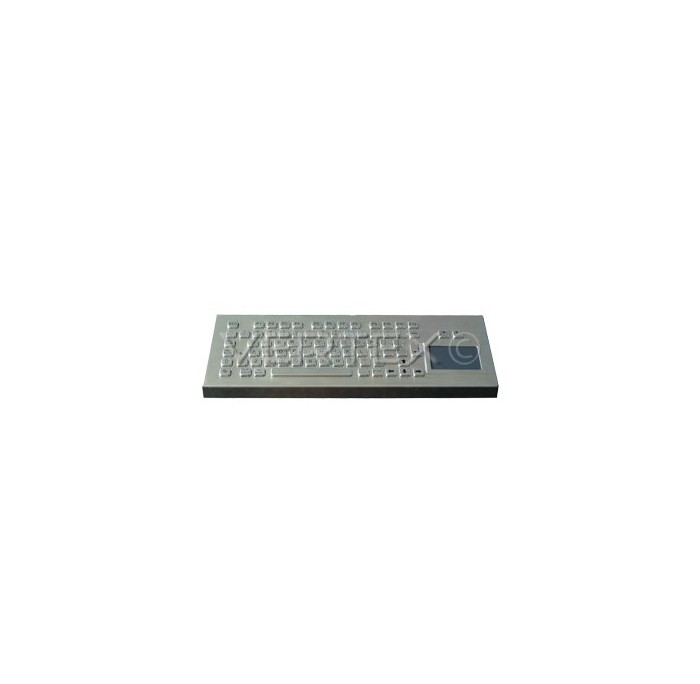

IP65 Industrie-Tastatur mit Touchpad

MECHANICAL DATA:

Actuator/keys: 80 keys, super quality SUS304 brushed stainless steel

Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available

Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar.

Key travel: 2.0mm

Actuation Force:  0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)

Switch life: more than 10 million of operations.

Stainless Steel Housing: full 1.2mm thickness super quality brushed stainless steel

Touchpad: sealed and ruggedized tough touchpad.

Touchpad cover: Composite

More than Lifetime 10 million strokes

Mutual Capacitance sensing

X/Y position sensing resolution: 40 counts/mm

X/Y position reporting: Relative

Output (self-detectable depending on cable): PS2 or USB

Tracking speed: Maximum 1,016 m/sec

Power supply voltage: 5 VDC ±0.25V

Current rating (active mode): 17 mA

G.W.: 2.30KGs

Dimensions: 361.0mm x 145.0mm x 20.0mm (L x W x H)

ELECTRICAL DATA:

Supply Voltage: +5V DC +/-5%

Current Rating: appr. 30mA

EMC Standard:  It is compliance with the council IEC 61000-4-2:2008；IEC 61000-4-3:2006+AI:2007+A2:2010；IEC 61000-4-4:2004

EMI: EN 55022: 2010

EMS: EN 55024:2010

Lifespan > 5 years

Switch Contact Material: Carbon-on-Gold key switch technology PCB.

Interface: PS2, USB available,

OS: All windows, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY:

Operating temperature:-20oC to +60oC

Storage temperature: -30oC to +70oC

Operating RH: 30-90%

Atmospheric pressure: 60-106Kpa.

Saline mist: 96 hours, IEC 60512-6

Damp heat test at + 40oC: 21 days, IEC 60512-6

Dry heat test at + 85oC: 10 days, IEC 60512-6

RELIABILITY:

RoHS Compliant, CE and FCC, ESD

Protection Level: IP65(front panel)

Vandal resistant IK09

Key Lifespan >10 million actuations

MTBF >50000H

MTTR <30min
