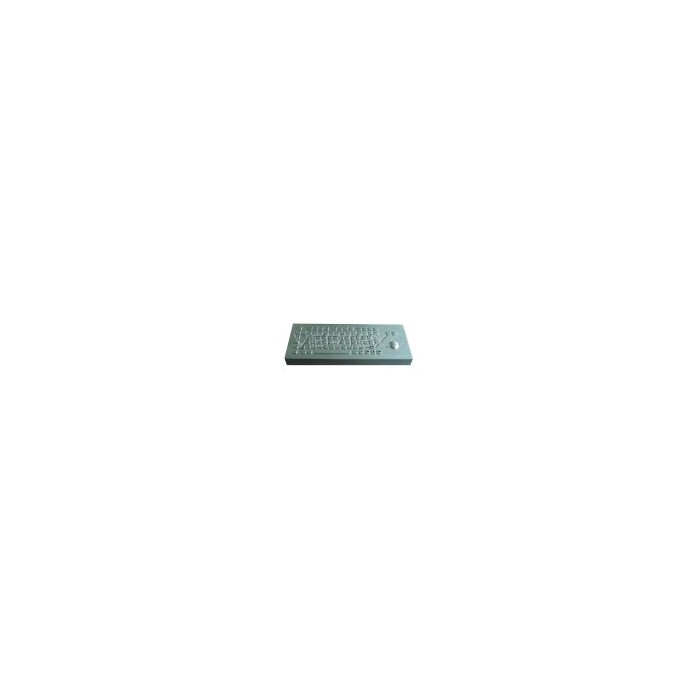

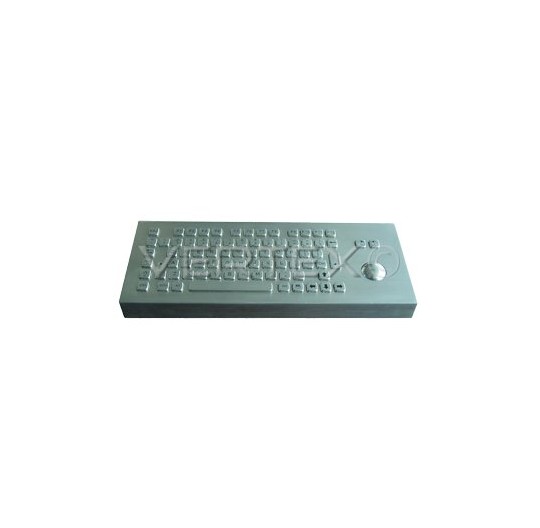

IP65 Industrie-Tastatur mit Trackball

TSI118

New

Edelstahltastatur mit 81 Tasten, im kompaktem Format, vandalensicher und mit einem abwaschbaren Trackball (optisch). Der 38.0mm Trackball ist aus Edelstahl, nach IP68 geschützt und hat eine Auflösung von 800 DPI.

More details

More info

The Keyboard has the carbon‐on‐gold key switch technology with long stroke (2.0mm) for fast data input, functional keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation, Stand alone desk top version. All language versions are available on request (QWERTY - AZERTY).

MECHANICAL DATA:

Actuator/keys: 81 keys, super quality SUS304 brushed stainless steel

Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available

Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar.

Key travel: 2.0mm

Actuation Force: 0.6 N+/‐0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/‐0.1N for key 14.0mm x 28.0mm (pressure point)

Switch life: more than 10 million of operations.

Stainless Steel Housing: full 1.2mm thickness super quality brushed stainless steel

Tracker ball: 38.1mm (1.5’) diameter, IP65 static 400DPI mechanical trackball, IP68 dynamic washable 800DPI optical trackball

G.W.: 2.50KGs

Dimensions:361.0mm x 145.0mm x 32.0mm (L x W x H)



ELECTRICAL DATA:

Supply Voltage: +5V DC +/‐5%

Current Rating: appr. 30mA (non‐backlight)

EMC Standard: It is compliance with the council EMC directive 89/336/EEC

EN55022: 1988+A1:2000+A2:2003

EN55024: 1988+A1:2001+A2:2003

Emission: EN 50081‐1

Immunity: EN 50082‐1

Lifespan > 5 years

Switch Contact Material: Carbon‐on-Gold

Interface: PS2, USB available

OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/WIN7, Linux, Unix, Mac OSX



ENVIRONMENTAL ADAPTABILITY:

Operating temperature:‐20oC to +60oC

Storage temperature: ‐30oC to +70oC

Operating RH: 30‐90%

Atmospheric pressure: 60‐106Kpa.

Saline mist: 96 hours, IEC 60512‐6

Damp heat test at + 40oC: 21 days, IEC 60512‐6

Dry heat test at + 85oC: 10 days, IEC 60512‐6



RELIABILITY:

RoHS Compliant, CE and FCC, ESD

Protection Level: IP65(front panel)

Vandal resistant IK09

Key Lifespan >10 million actuations

MTBF >50000H

MTTR <30min
