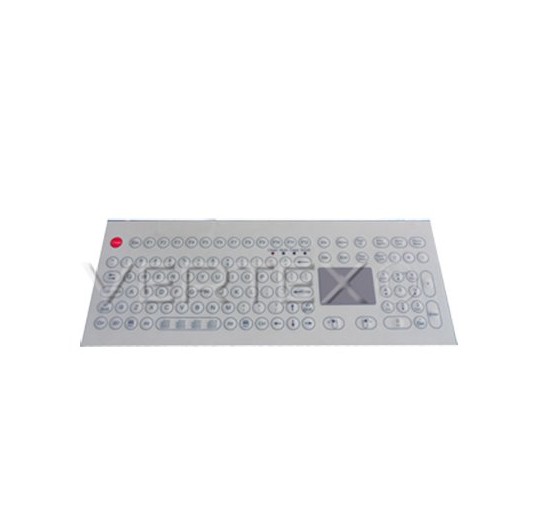

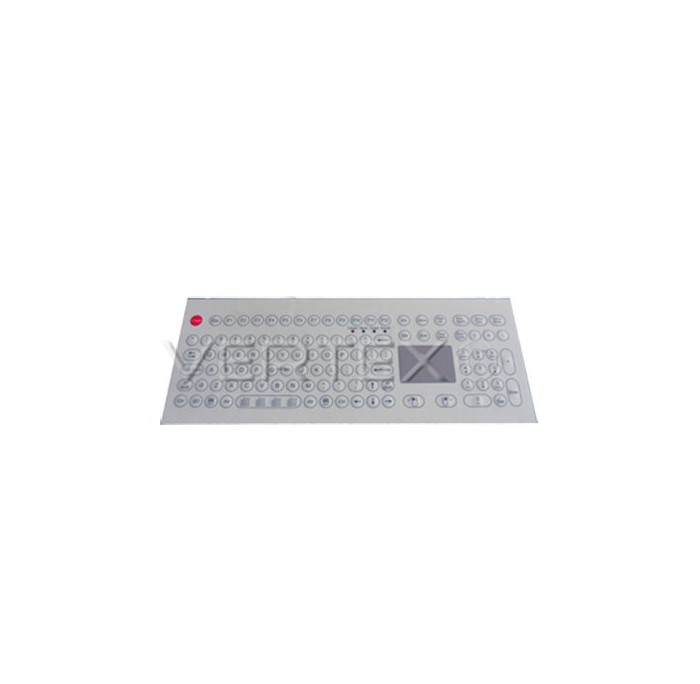

IP65 Industrie-Tastatur mit Touchpad

TSI131

New

Industrietastatur mit 108 Tasten, geschützt nach IP65 mit integriertem Ziffernblock und voller Funktionalität. Einfach zu reinigen und ohne die Tastatur vom PC abzustecken. Resistent gegen chemische Stoffe und Flüssigkeiten, auch in rauher Umgebung. Alle Sprachversionen auf Anfrage erhältlich. ( QWERTZ - AZERTY ).

More details

More info

MECHANICAL DATA

Number of Keys: 107

Key switch Technology: metal dome key switch technology with short travel keys

Actuation Force: 1.0N for key 13.0mm x 13.0mm (press point)

Key Travel: 0.45mm

Key switch Lifetime: 3 mil. operations

Protection Level: IP65, NEMA 4x

Mounting Type: Top panel mounting or Desk Top.

Operating Temperature: -20 °C to +50 °C;

Colors: 4 (Blue, white, grey, black)

G.W.: 1.30KGs

Key Dimensions (print area): 13.0mm x 13.0mm

Dimensions: 410.0mm x 160.0mm  (Front Panel)



TOUCHPAD:

Touchpad cover: Composite

Motion Detection

Method: capacitive

Resolution: 40 counts / mm

More than Lifetime 10 million strokes

Mutual Capacitance sensing

X/Y position sensing resolution: 40 counts/mm

X/Y position reporting: Relative

Output (self-detectable depending on cable): PS2 or USB

Tracking speed: Maximum 1,016 m/sec

Power supply voltage: 5 V DC ±0.25V

Current rating (active mode): 17 mA



ELECTRICAL DATA:

Supply Voltage: +5V DC +/- 5%

Current Rating: appr. 30mA

EMC Standard:  It is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004

EMI: EN 55022: 2010

EMS: EN 55024:2010

Lifespan   > 3 years

Interface: PS2, USB available.

OS: All windows, Linux, Unit, Mac OSX



RELIABILITY:

RoHS , CE, FCC, ESD

Protection Level: IP65 (front panel)

Key Lifespan >3 million actuations

Touchpad lifespan > 10 million of times

MTBF >50000H

MTTR <30min
