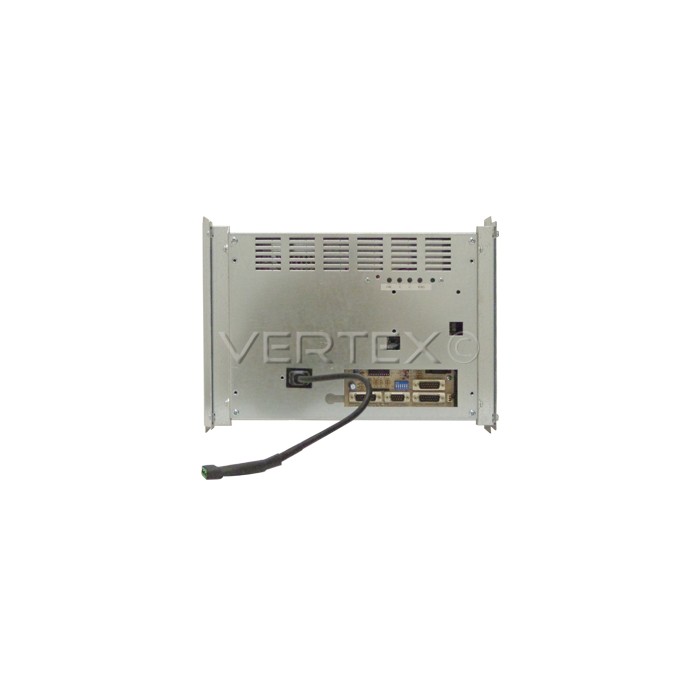

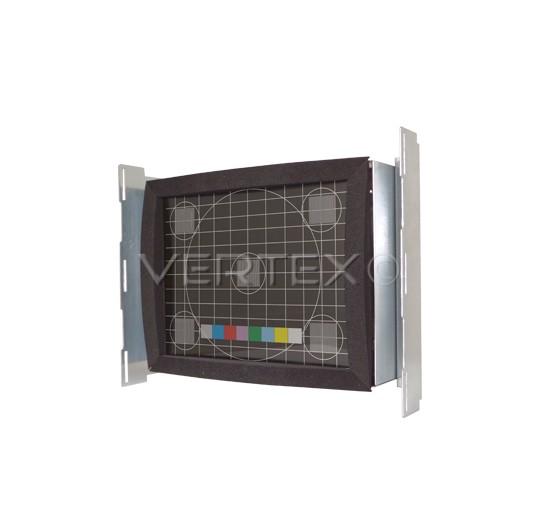

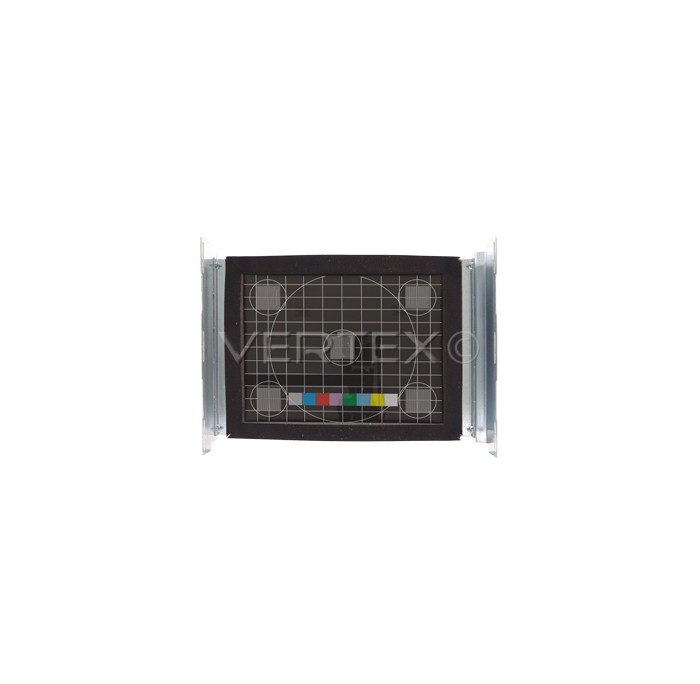

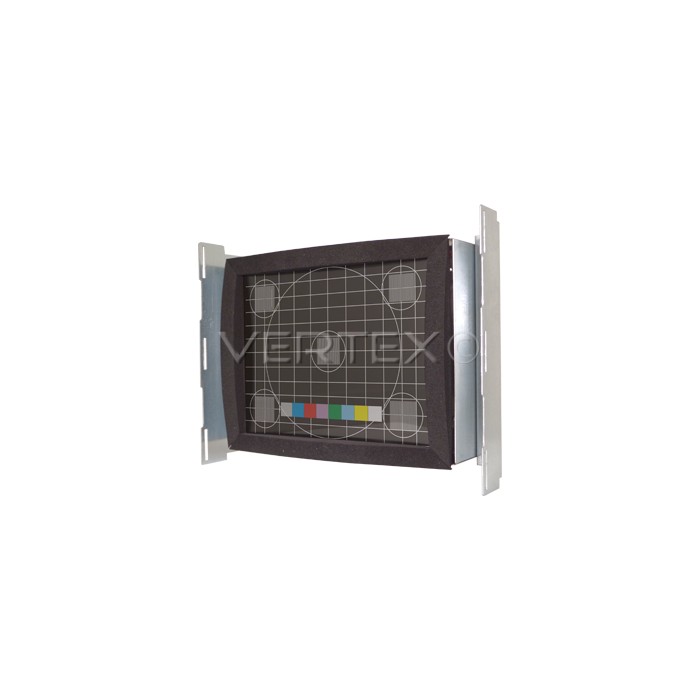

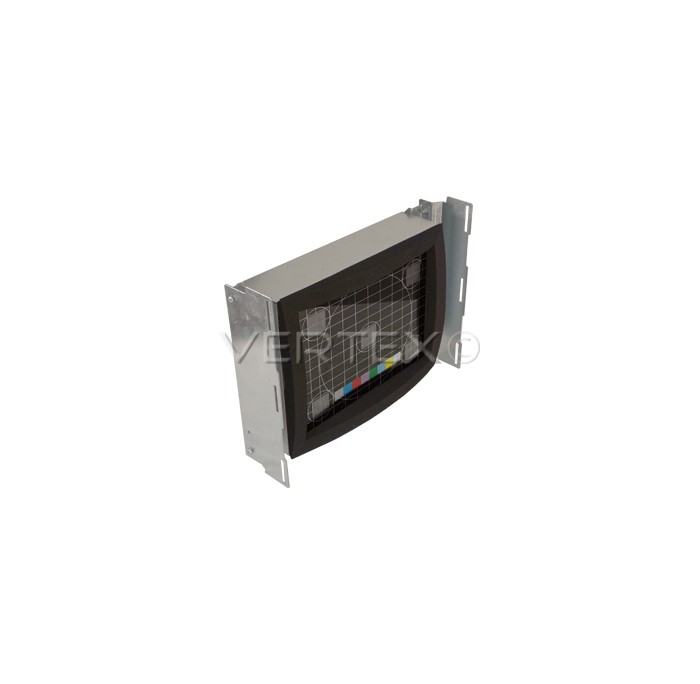

Heidenhain BC 110B - TFT-Ersatzmonitor

Model TOI12LB1-A301

Condition New

12" TFT Industriemonitor als Ersatz für den 14" CRT Farbmonitor verbaut in Heidenhain: TNC 355-406-407-415-425- 426-430 BC 110

More details

An einen Freund senden

An einen Freund senden

Heidenhain BC 110B - TFT-Ersatzmonitor
12" TFT Industriemonitor als Ersatz für den 14" CRT Farbmonitor verbaut in Heidenhain: TNC 355-406-407-415-425- 426-430 BC 110

Empfänger :

Name Ihrer/es Freundin/es ^* :

E-Mailadresse Ihres Freundes ^* :

^* Pflichtfelder

oder Abbrechen

More info

This 12“ TFT monitor has been developed as a replacement for the 14“ CRT Color Monitor mounted in Heidenhain TNC 355-TNC 406-TNC 407-TNC 415-TNC 425-TNC 426-TNC 430.

Our TFT is a Plug & Play solution, that means it is 100% compatible on the electrical and mechanical side.

This allows a quick and easy replacing without a specific technical knowledge and tooling.

Technical data:
Operator panel / CNC	Heidenhain - TNC 406, TNC 407, TNC 410, TNC 415, TNC 425, TNC 426, TNC 430
Original Monitor Code	Heidenhain BC 110 - BC 110B - BC111
Display	12“ TFT LCD active matrix / 800x600 Pixel
Brightness	300 cd/m2
Viewing angle	140° H - 110° V
Frequency range	15-45 kHz horizontal, 50-75 Hz vertikal
Connector	SUB D15
Menu settings	Via OSD (On Screen Display)
Front panel	Frontal Lexan Protection
Mechanical dimension	100% compatible to the original
Operating voltage	100 - 240 VAC
Operating temperature	-10°C to 55°C
Manufactured according to	EN55022, EN55024

Product code:	TOI12LB1-A301
