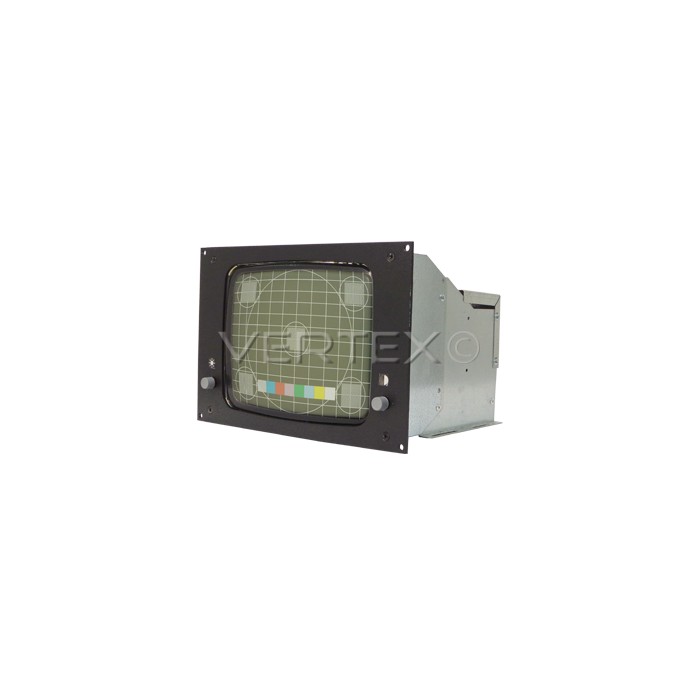

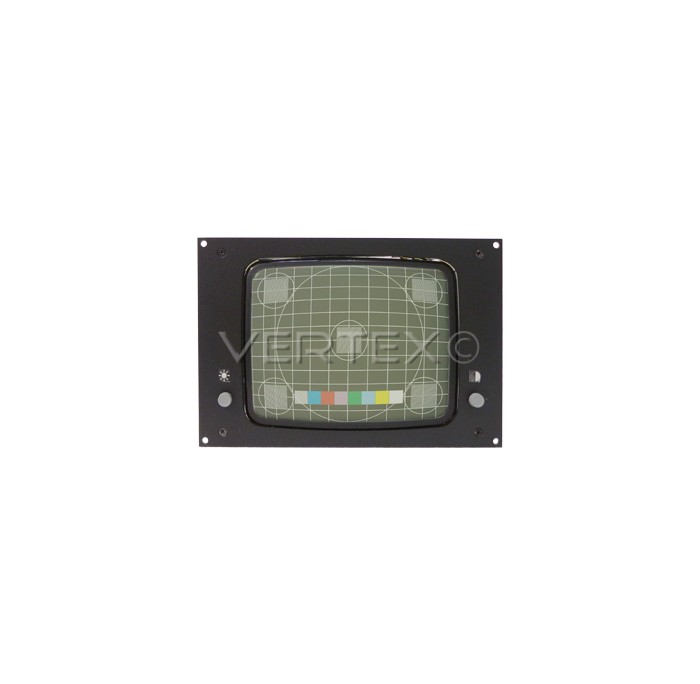

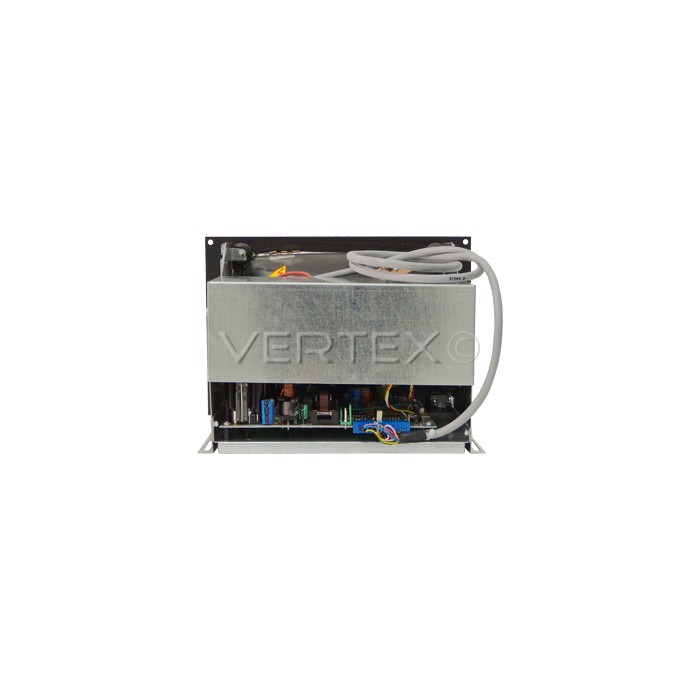

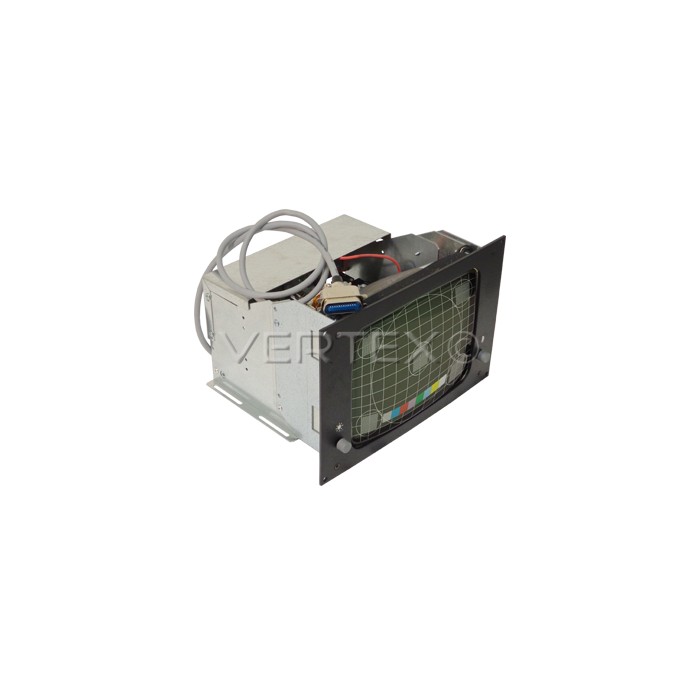

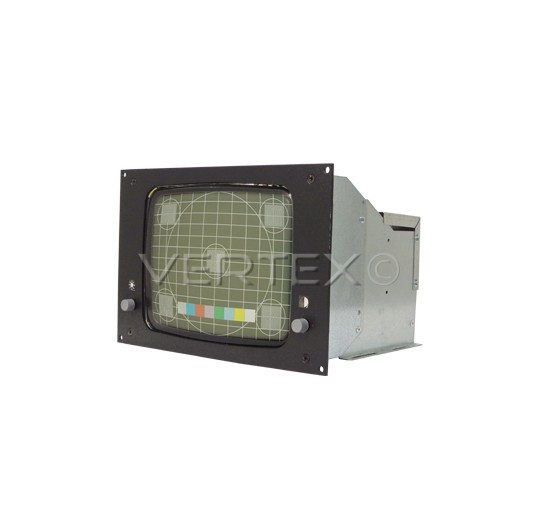

Heidenhain BE 110 - CRT-Ersatzmonitor

Model CO9LG72I2-A161

Condition New

9" CRT Industriemonitor als Ersatz für den 9" CRT Monochrom-Monitor verbaut in Heidenhain: TNC131-TNC13-TNC145-TNC150B-TNC150Q-TNC15-TNC151B-TNC151Q BE 110

More details

An einen Freund senden

An einen Freund senden

Heidenhain BE 110 - CRT-Ersatzmonitor
9" CRT Industriemonitor als Ersatz für den 9" CRT Monochrom-Monitor verbaut in Heidenhain: TNC131-TNC13-TNC145-TNC150B-TNC150Q-TNC15-TNC151B-TNC151Q BE 110

Empfänger :

Name Ihrer/es Freundin/es ^* :

E-Mailadresse Ihres Freundes ^* :

^* Pflichtfelder

oder Abbrechen

More info

This 9“ CRT monitor has been developed as a replacement for the 9“ CRT Monochrome Monitor mounted in Heidenhain BE 135.

Our TFT is a Plug & Play solution, that means it is 100% compatible on the electrical and mechanical side.

This allows a quick and easy replacing without a specific technical knowledge and tooling.

Technical data:
Operator panel / CNC	Heidenhain TNC131-TNC13-TNC145-TNC150B-TNC150Q-TNC15- TNC151B-TNC151Q
Original Monitor Code	Heidenhain BE 110
Display	9“ CRT
Frequency range	15-45 kHz horizontal, 50-75 Hz vertikal
Connector	CENTRONICS 24 pin
Mechanical dimension	100% compatible to the original
Operating voltage	12 Vdc
Operating temperature	-10°C to 55°C
Manufactured according to	EN55022, EN55024

Product code:	CO9LG72I2-A161
