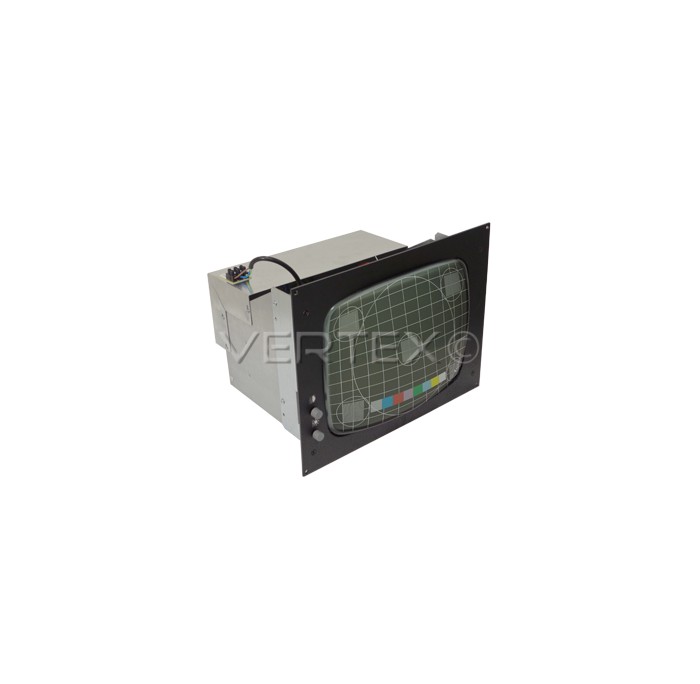

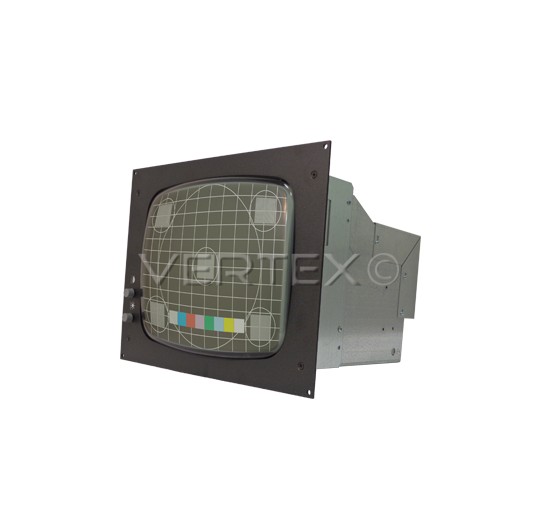

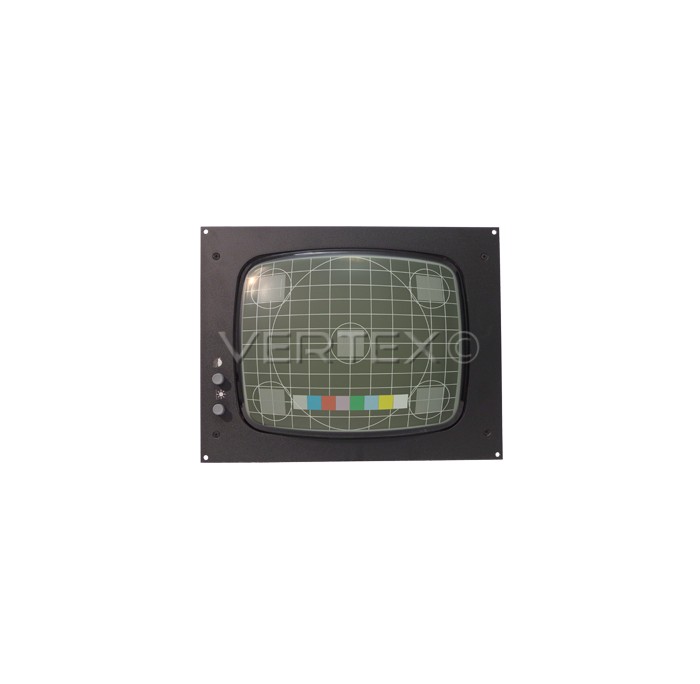

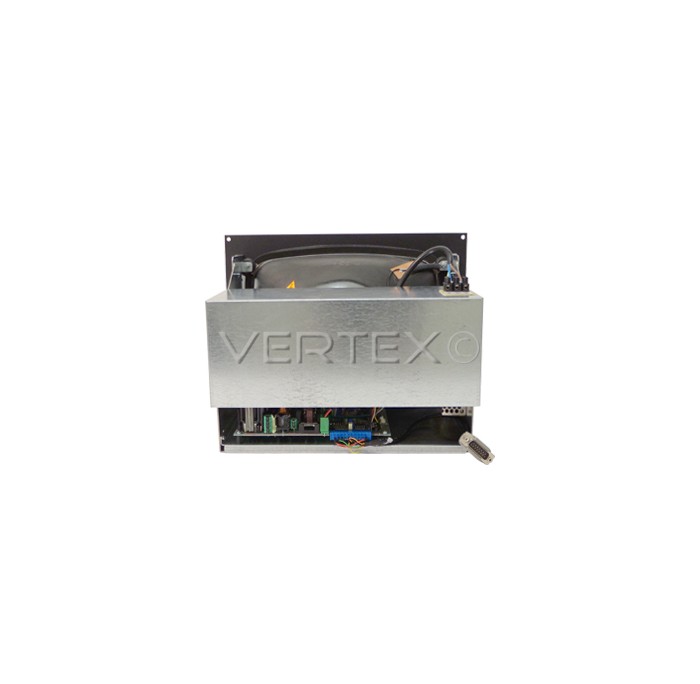

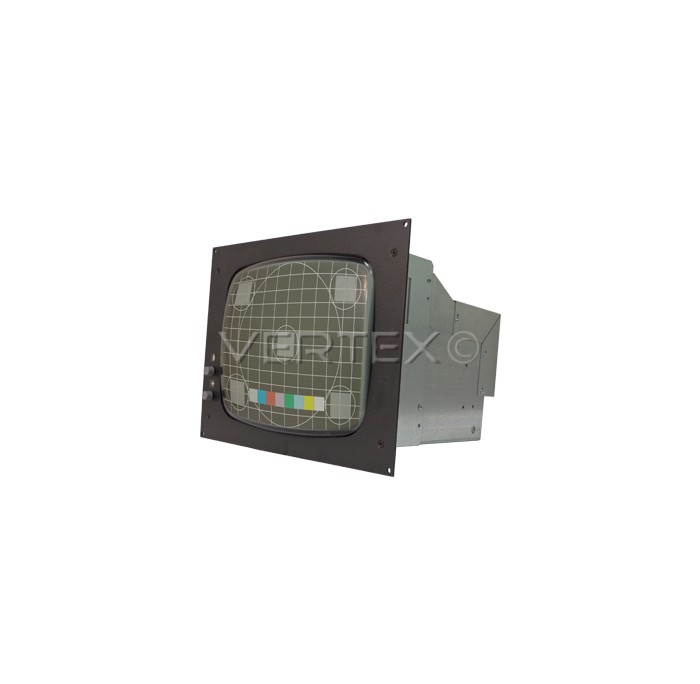

Heidenhain BE 411B - BE 412B - CRT-Ersatzmonitor

Model CO12LG72D1-A115

Condition New

12" CRT Industriemonitor als Ersatz für den 12" CRT Monochrom-Monitor verbaut in Heidenhain: TNC246-TNC2500B-TNC306-TNC335-TNC351-TNC355-TNC360-CNC322-CNC223 BE 411B - BE 412B

More details

An einen Freund senden

An einen Freund senden

Heidenhain BE 411B - BE 412B - CRT-Ersatzmonitor
12" CRT Industriemonitor als Ersatz für den 12" CRT Monochrom-Monitor verbaut in Heidenhain: TNC246-TNC2500B-TNC306-TNC335-TNC351-TNC355-TNC360-CNC322-CNC223 BE 411B - BE 412B

Empfänger :

Name Ihrer/es Freundin/es ^* :

E-Mailadresse Ihres Freundes ^* :

^* Pflichtfelder

oder Abbrechen

More info

This 12“ CRT monitor has been developed as a replacement for the 12“ CRT Monochrome Monitor mounted in Heidenhain BE 411B - BE412B.

Our TFT is a Plug & Play solution, that means it is 100% compatible on the electrical and mechanical side.

This allows a quick and easy replacing without a specific technical knowledge and tooling.

Technical data:
Operator panel / CNC	Heidenhain TNC246-TNC2500B-TNC306-TNC335-TNC351- TNC355-TNC360 - CNC322-CNC223
Original Monitor Code	Heidenhain BE411B - BE412B
Display	12“ CRT
Brightness	300 cd/m2
Viewing angle	140° H - 110° V
Frequency range	15-45 kHz horizontal, 50-75 Hz vertikal
Connector	SUB D 15M
Menu settings	Via OSD (On Screen Display)
Front panel	Frontal Lexan Protection
Mechanical dimension	100% compatible to the original
Operating voltage	100 - 240 Vac
Operating temperature	-10°C to 55°C
Manufactured according to	EN55022, EN55024

Product code:	CO12LG72D1-A115
