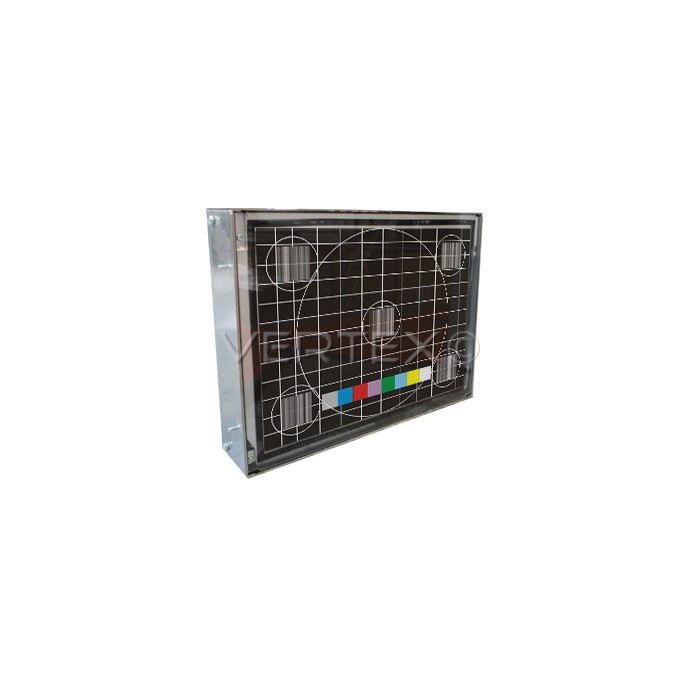

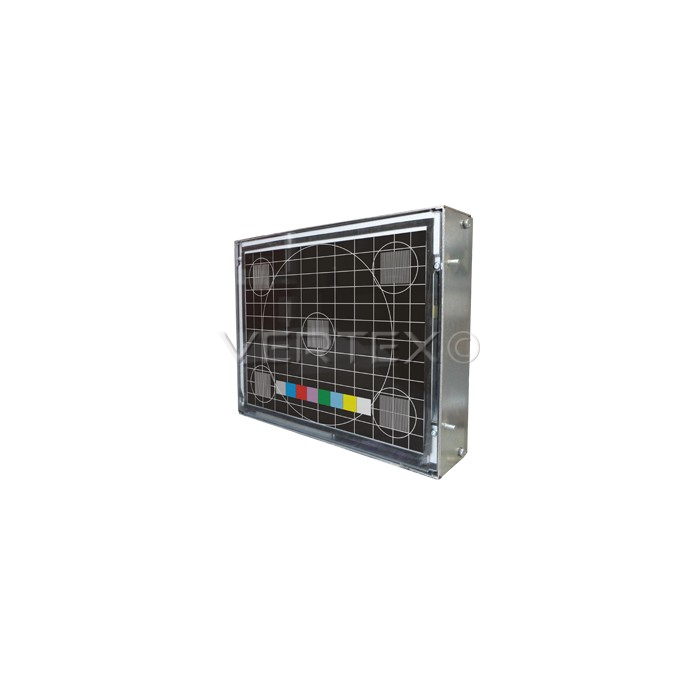

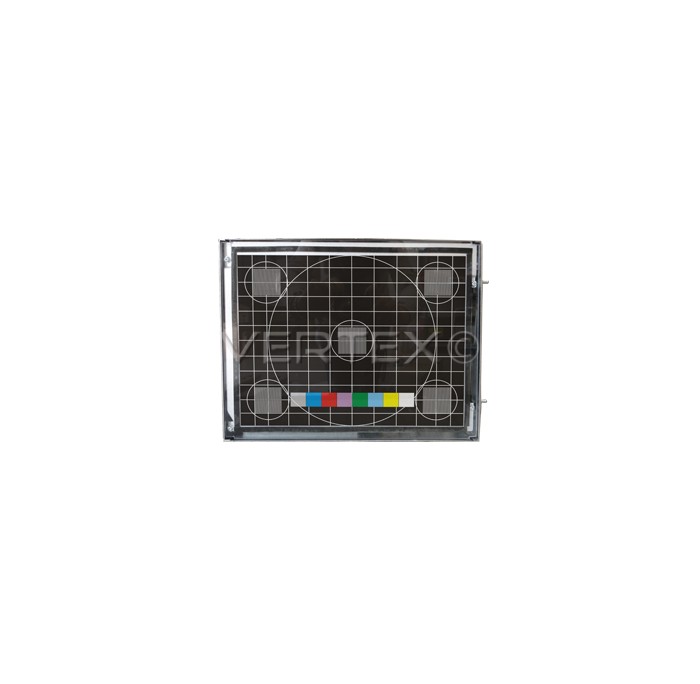

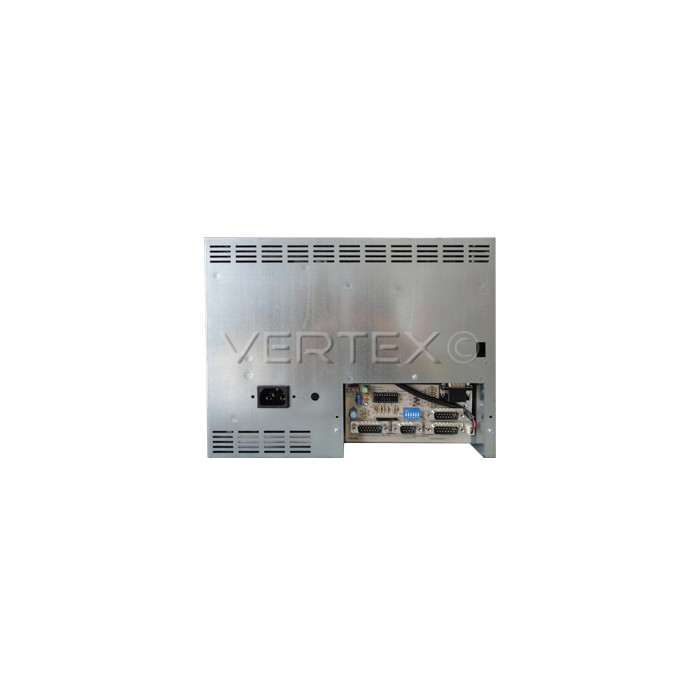

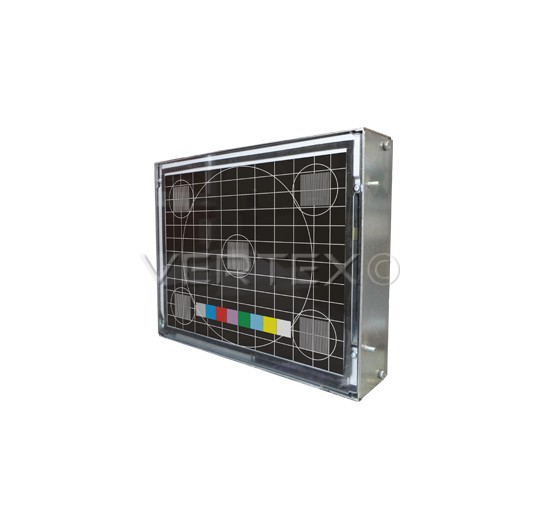

Heidenhain BC 110 BF - TFT-Ersatzmonitor

Technical data:

Operator panel / CNC

Heidenhain TNC 406-407-410-415-425-426-430

Original Monitor Code

HEIDENHAIN BC 110 BF

Display

12“ TFT LCD active matrix / 800x600

Brightness

300 cd/m2

Viewing angle

140° H - 110° V

Frequency range

15-45 kHz horizontal, 50-75 Hz vertikal

Connector

SUB-D 15 M

Menu settings

Via OSD (On Screen Display)

Front panel

Frontal Lexan Protection

Mechanical dimension

100% compatible to the original

Operating voltage

100 - 240 VAC

Operating temperature

-10°C to 55°C

Manufactured according to

EN55022, EN55024

Product code:

TOI12LB1-A575
