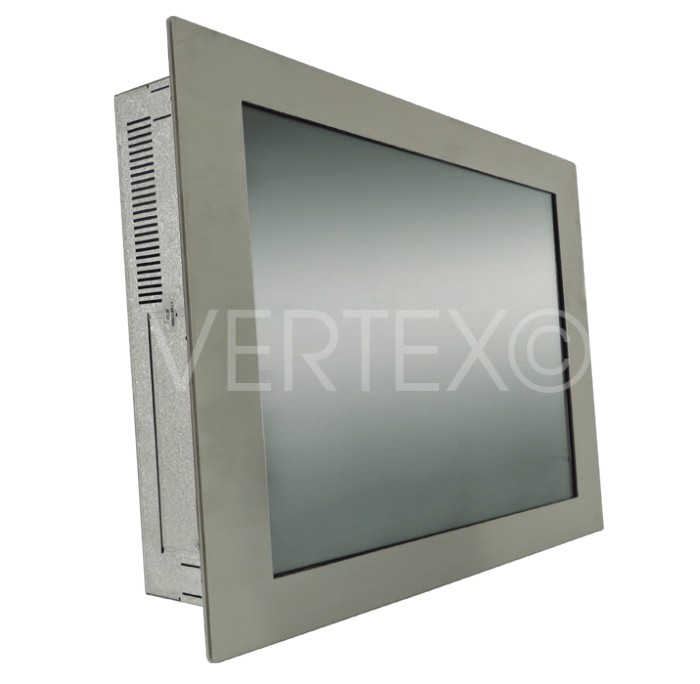

19" Lizard Edelstahl-Panel PC, frontal geschützt nach IP65

Technical data:

Lcd

19” XGA / Pixel Resolution 1280x1024

Brightness

300 cd/m2

Viewing Angle

170° H - 160° V

Connector

HDMI / 4 x RS-232 /  1 x LPT / 3 x USB / 1 x VGA / AUDIO

Touch Screen

Resistive

Power Supply

12 VDC

Operating Voltage

0 °C - 55°C

Case / IP Class

Frontal IP65

Standard Plate

Inox AISI 304

Cpu available

Intel® Atom Processor N270 - 1.6GHz

Chipset

GM 945

Memory

2 Gb DDR2 SO-DIMM

Storage

2,5" HDD  - SSD Modules

Expansion Bus

PCI - PCI-e X16

Operating System

- Windows 7 for Embedded

- Windows Embedded Standard 7

- Embedded Linux, Real-time Kernel

Options

 - CPU Intel® N2800 Dual Core 1.86GHz fanless

 - CPU Intel® i3 / i5 / i7

 - Atom D2550 Dual Core 1.86 GHz

 - Touch screen : Glas-Film-Glas (GFG), PCT Multitouch

 - Extended Temperature Range up to -20° C - 70 °C

 - WIFI

 - Power Supply : 24 VDC, 9-27 VDC / 100-240 VAC with external or internal adapter

 - Optional Plate : Inox AISI 316 (V4A)

Product code:

PNI19TE2
