PHI10CE2
New
Availability date:
10" Lizard Panel-Mount-PC, in RAL9005, frontal geschützt nach IP65
10,4" Lizard Panel-Mount-PC für Anwendungen in der IndustrieEmpfänger :
* Pflichtfelder
oder Abbrechen
10" Lizard Panel-Mount-PC, in RAL9005, frontal geschützt nach IP65
10,4" Lizard Panel-Mount-PC für Anwendungen in der IndustrieFor questions regarding an order, thank you use the contact form
* Required fields
Cancel or
Technical data: |
|
Lcd |
10.4” SVGA / Pixel Resolution 800x600 |
Brightness |
350 cd/m2 |
Viewing Angle |
120° H - 90° V |
Connector |

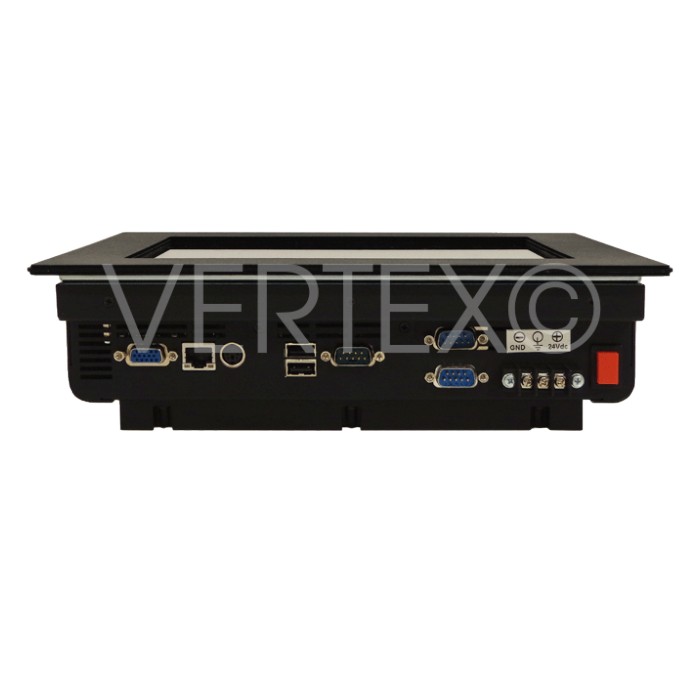

1 x PS2 / 3 x RS-232 / 1 x RS-422/485 / 1 x LAN / 2 x USB / 1 x VGA / AUDIO |
Optional Connector |
LPT |
Touch Screen |
Resistive |
Power Supply |
12 VDC |
Operating Temperature |
0 °C - 55°C |
Case / IP Class |
Frontal IP65 |
Cpu available |
Intel® Atom Processor N2600 Dual Core - 1.6GHz |
Chipset |
GM 945 |
Memory |
2 Gb DDR2 SO-DIMM |
Storage |
2,5" HDD - SSD Modules |
Expansion Bus |
PCI - PCI - e X16 |
Operating System |
- Windows XP pro for Embedded - Windows 7 for Embedded - Windows Embedded Standard 7 - Windows XP Embedded - Embedded Linux, Real-time Kernel
|
Options |
- CPU Intel® Celeron M Processor 1GHz - Fanless - CPU AMD® LX 800 Processors 500 MHz - Fanless - Touch screen : Glas-Film-Glas (GFG), PCT Multitouch - Extended Temperature Range up to -20° C - 70 °C - WIFI - Optional Resolution : 1024x768 - Power Supply : 24 VDC, 9-27 VDC / 100-240 VAC with external adapter - Optional Mechanical : Open frame - Rack
|
|
|
Product code: |
PHI10CE2
|
Bisher noch kein Kundenkommentar
