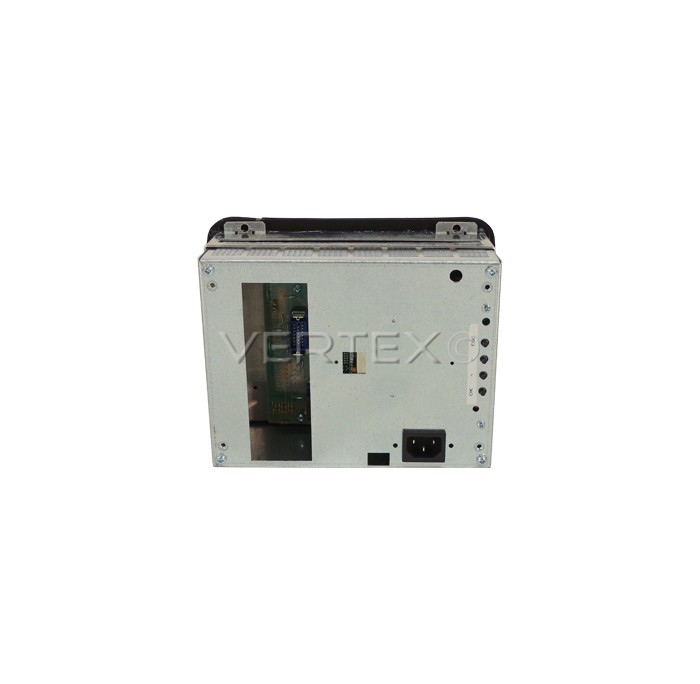

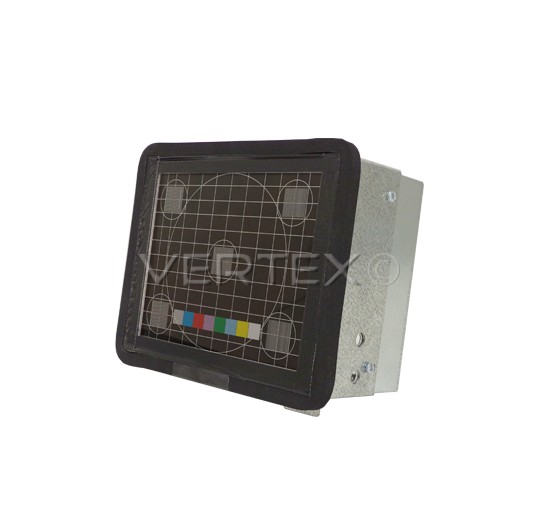

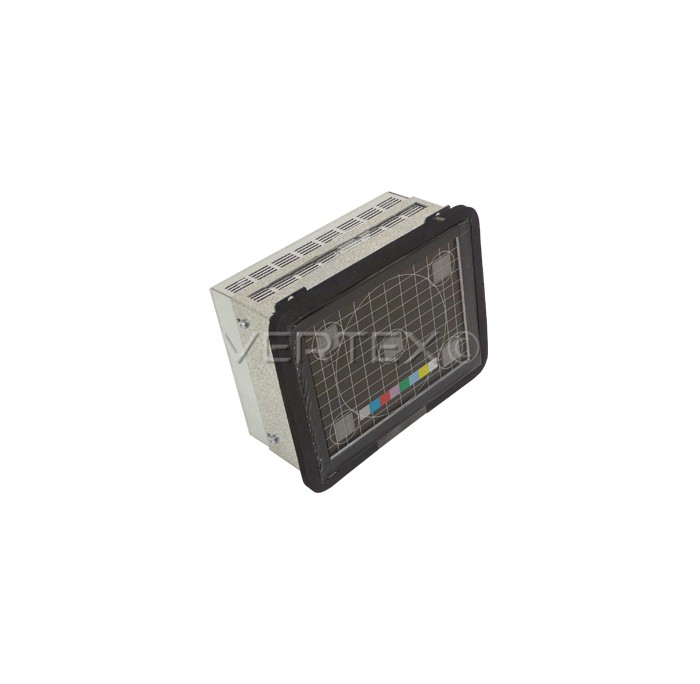

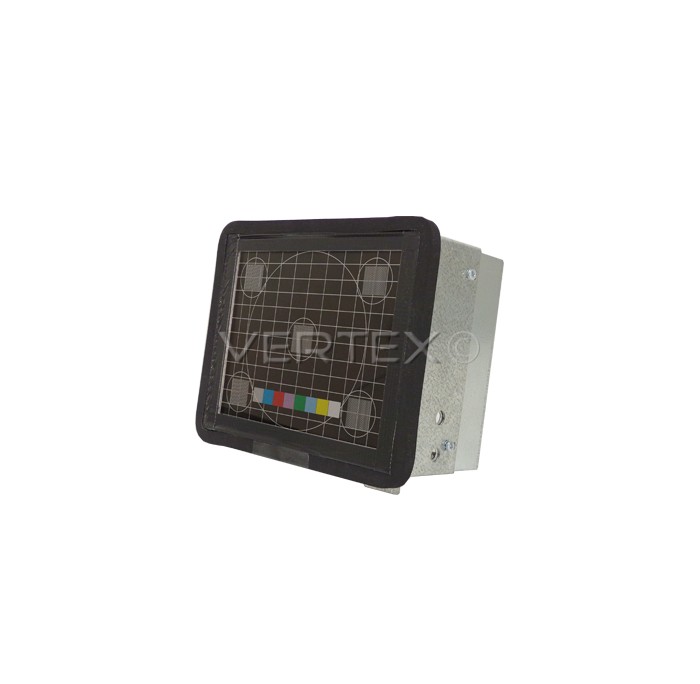

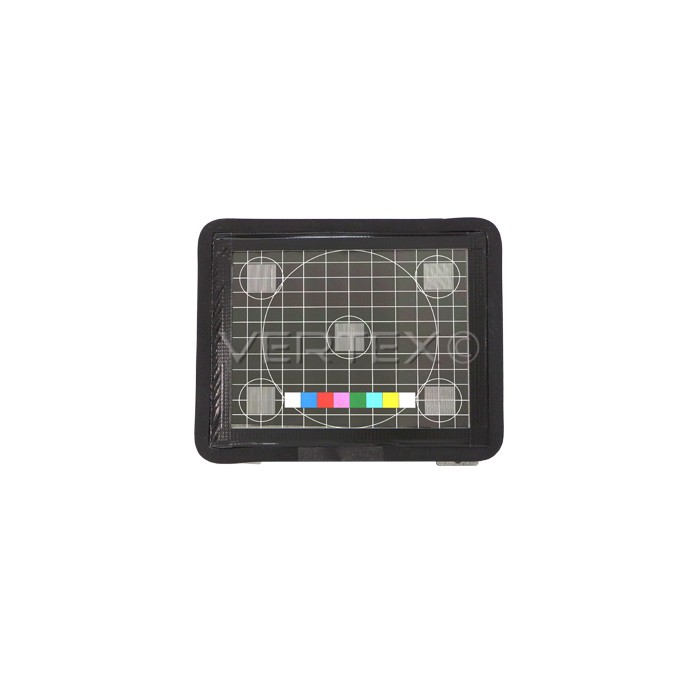

Fanuc A61L-0001-0071 - TFT-Ersatzmonitor

Model TOI8LB1-FAN

Condition New

8,4" TFT Industriemonitor als Ersatz für den 9" CRT Farbmonitor verbaut in Fanuc 6M, 6T, 10T, 10M, 11M, 11T, 15A, 15B, 15M, 15T, 0 - MC, 0-TC, 0-MD, 16,18,20,16 T, 16M, 18M, 20T A61L-0001-0071

More details

An einen Freund senden

An einen Freund senden

Fanuc A61L-0001-0071 - TFT-Ersatzmonitor
8,4" TFT Industriemonitor als Ersatz für den 9" CRT Farbmonitor verbaut in Fanuc 6M, 6T, 10T, 10M, 11M, 11T, 15A, 15B, 15M, 15T, 0 - MC, 0-TC, 0-MD, 16,18,20,16 T, 16M, 18M, 20T A61L-0001-0071

Empfänger :

Name Ihrer/es Freundin/es ^* :

E-Mailadresse Ihres Freundes ^* :

^* Pflichtfelder

oder Abbrechen

More info

This 8,4“ TFT monitor has been developed as a replacement for the 9“ CRT Color Monitor mounted in Fanuc A61L-0001-0071.

Our TFT is a Plug & Play solution, that means it is 100% compatible on the electrical and mechanical side.

This allows a quick and easy replacing without a specific technical knowledge and tooling.

Technical data:
Operator panel / CNC	Fanuc 6M, 6T, 10T, 10M, 11M, 11T, 15A, 15B, 15M, 15T, 0 - MC, 0-TC, 0-MD, 16,18,20,16 T, 16M, 18M, 20T
Original Monitor Code	Fanuc A61L-0001-0071
Display	8,4“ TFT LCD active matrix / 800x600
Brightness	300 cd/m2
Viewing angle	140° H - 120° V
Frequency range	15-45 kHz horizontal, 50-75 Hz vertikal
Connector	HONDA 20P (FANUC)
Menu settings	Via OSD (On Screen Display)
Front panel	Frontal Lexan Protection
Mechanical dimension	100% compatible to the original
Operating voltage	12 VDC
Operating temperature	-10°C to 55°C
Manufactured according to	EN55022, EN55024

Product code:	TOI8LB1-FAN
