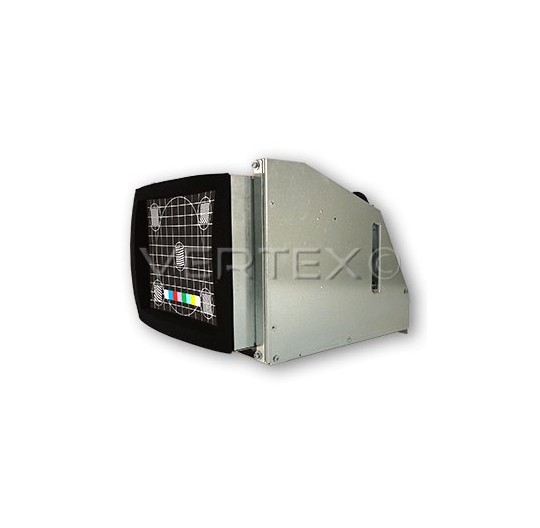

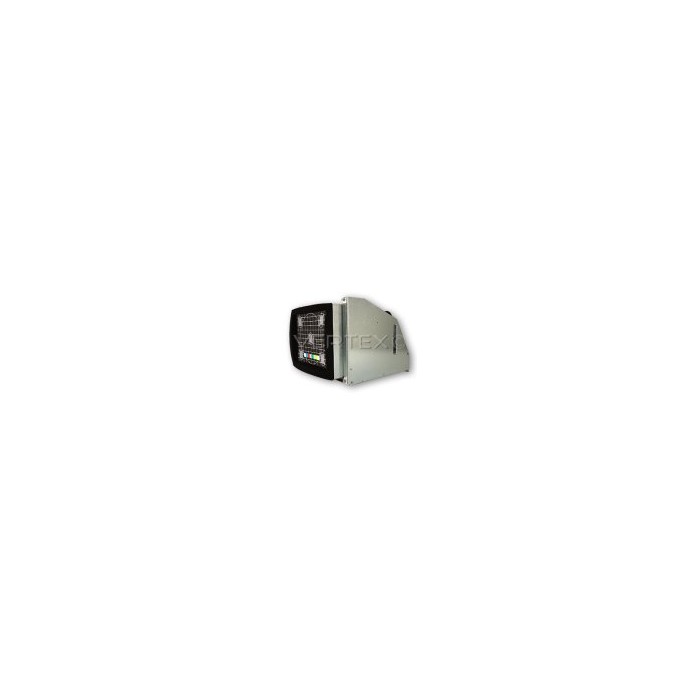

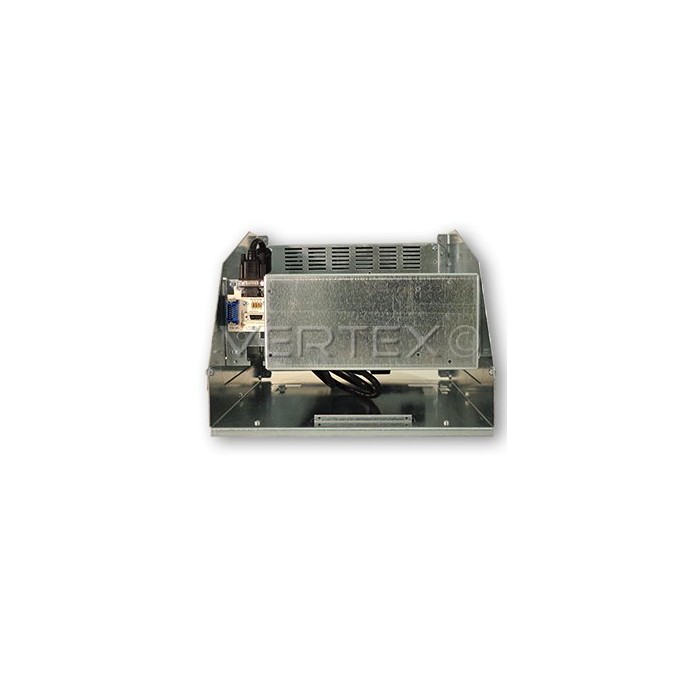

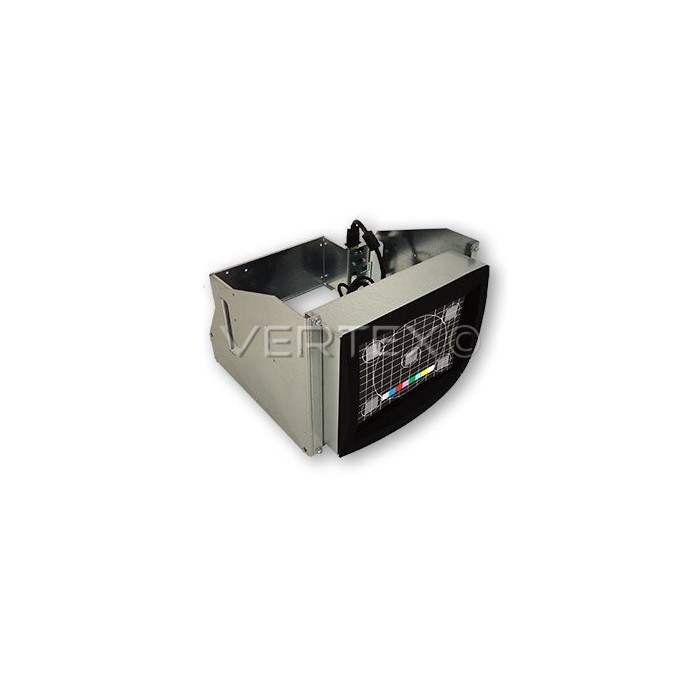

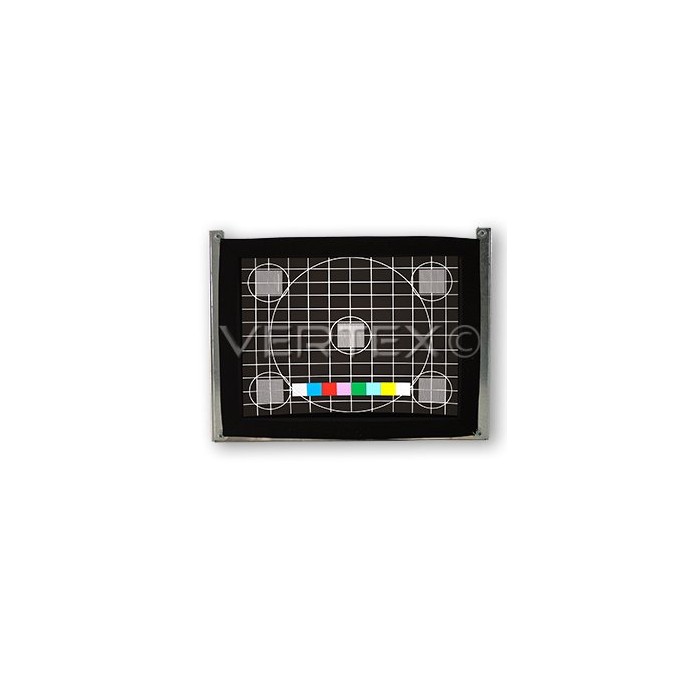

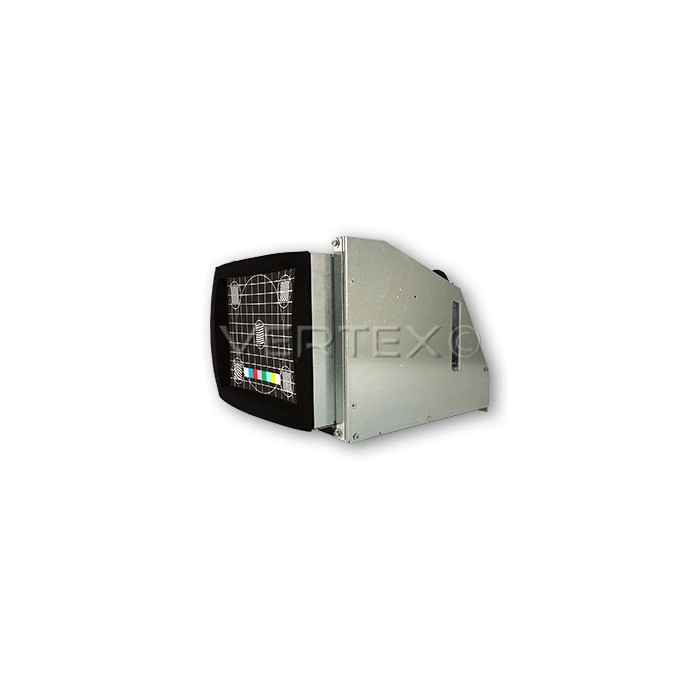

TFT Replacement monitor for Fanuc A61L-0001-0094

View larger

Fanuc A61L-0001-0094 - TFT-Ersatzmonitor

Model TOI12LB1-A297

Condition New

12" TFT Industriemonitor als Ersatz für den 14"CRT Farbmonitor verbaut in Fanuc 6M-6T-10T-10M-11M-11T-15A-15B-15M-15T-0-MC-0-TC-0-MD- 16-18-20-16T-16M-18M-20T Series A61L-0001-0094

More details

An einen Freund senden

An einen Freund senden

Fanuc A61L-0001-0094 - TFT-Ersatzmonitor
12" TFT Industriemonitor als Ersatz für den 14"CRT Farbmonitor verbaut in Fanuc 6M-6T-10T-10M-11M-11T-15A-15B-15M-15T-0-MC-0-TC-0-MD- 16-18-20-16T-16M-18M-20T Series A61L-0001-0094

Empfänger :

Name Ihrer/es Freundin/es ^* :

E-Mailadresse Ihres Freundes ^* :

^* Pflichtfelder

oder Abbrechen

More info

This 12“ TFT monitor has been developed as a replacement for the 14“ CRT Color Monitor mounted in Fanuc A61L-0001-0094.

Our TFT is a Plug & Play solution, that means it is 100% compatible on the electrical and mechanical side.

This allows a quick and easy replacing without a specific technical knowledge and tooling.

Technical data:
Operator panel / CNC	Fanuc Serie: 6M-6T-10T-10M-11M-11T-15A-15B-15M- 15T-0-MC-0-TC-0-MD- 16-18-20-16T-16M-18M-20T
Original Monitor Code	Fanuc A61L-0001-0074, A61L-0001-0094, A61L-0001-0096, A61L-0001-0097, A02B-0200-C071/MBR, A02B-0222-C071/TBS, A02B-0094-C041, A04B-0224-C220, DNC74, DNC94, DNC96
Display	12“ TFT LCD active matrix / 800x600
Brightness	300 cd/m2
Viewing angle	140° H - 110° V
Frequency range	15-45 kHz horizontal, 50-75 Hz vertikal
Connector	HONDA 20P
Menu settings	Via OSD (On Screen Display)
Front panel	Frontal Lexan Protection
Mechanical dimension	100% compatible to the original
Operating voltage	100 - 240 VAC
Operating temperature	-10°C to 55°C
Manufactured according to	EN55022, EN55024

Product code:	TOI12LB1-A297
