Siemens Sinumerik 820T/880 - TFT-Ersatzmonitor
TOI10LB1-SIN3
New
More info

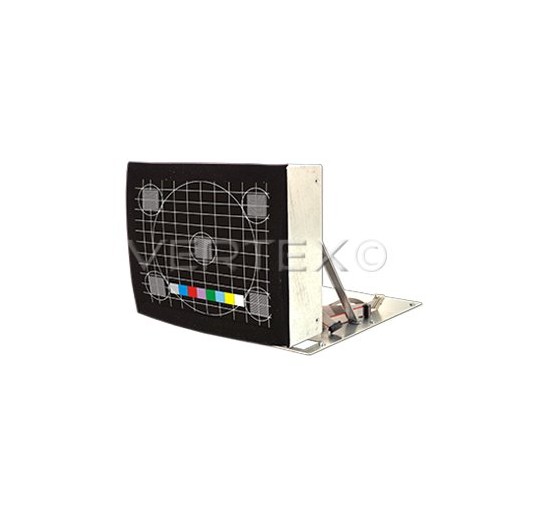

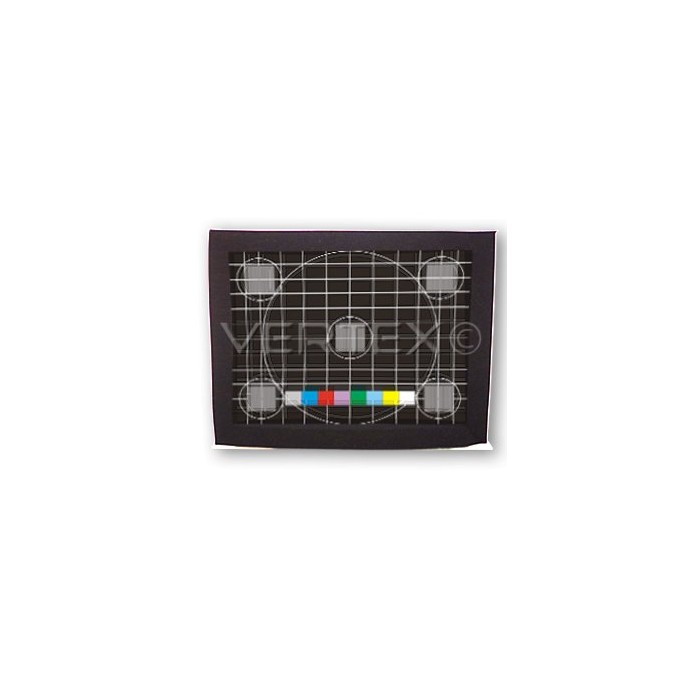

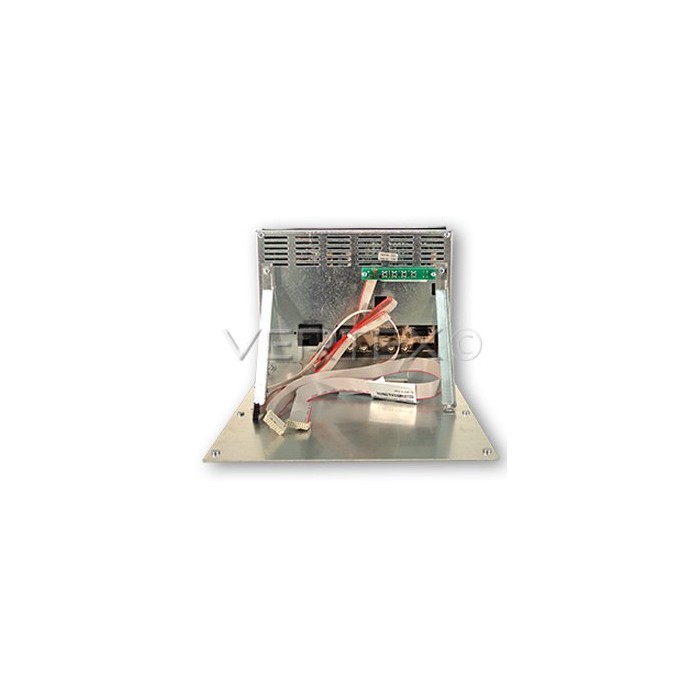

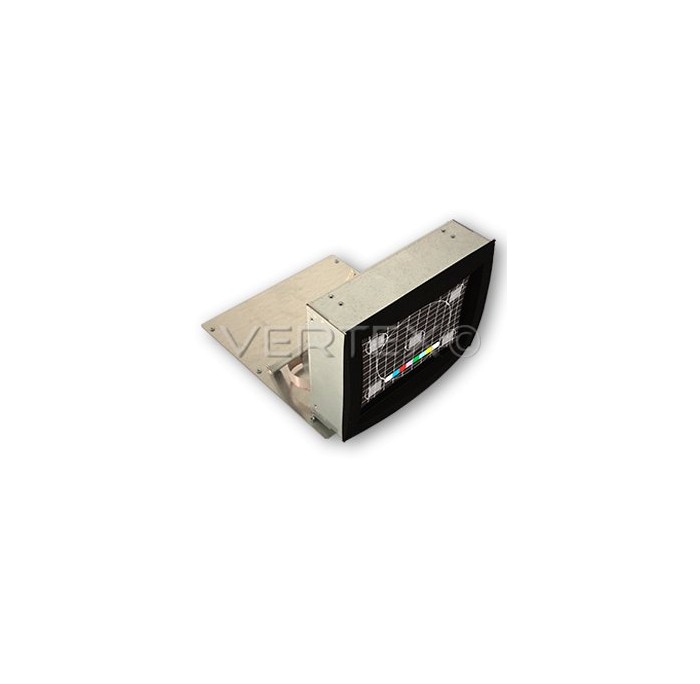

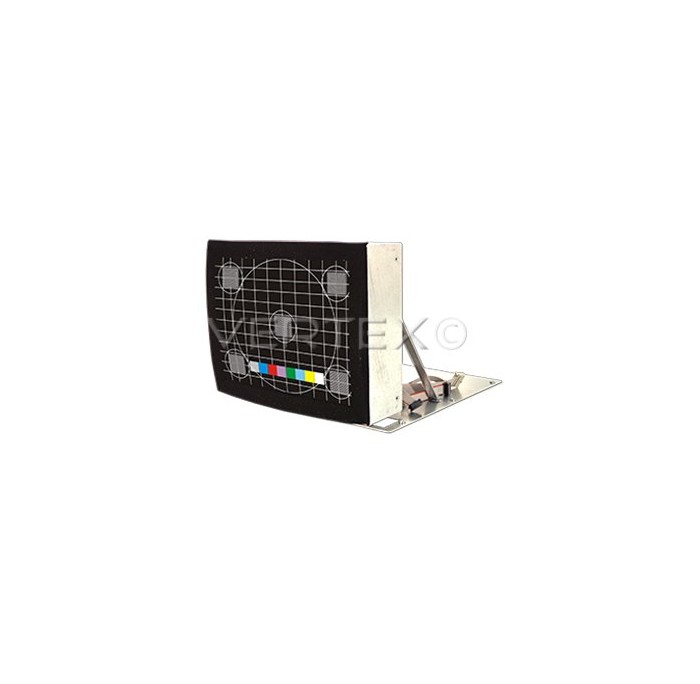

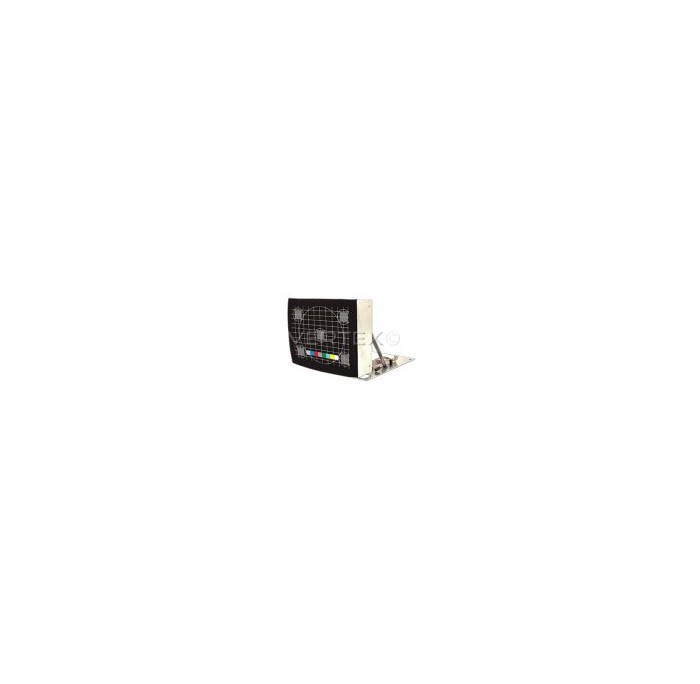

This 10“ TFT monitor has been developed as a replacement for the 12“ CRT Color Monitor mounted in Siemens Sinumerik 820T/880.
Our TFT is a Plug & Play solution, that means it is 100% compatible on the electrical and mechanical side.
This allows a quick and easy replacing without a specific technical knowledge and tooling.
|
Technical data: |
|
|
Operator panel / CNC |
Siemens Sinumerik 820T/880 |
|
Monitor Code |
6FC3988-7FD20 - 6FC3988-7AH13 - 6FC3988-7AH20 - 6FC3985-7AH |
|
Display |
10“ TFT LCD active matrix / 800x600 |
|
Brightness |
300 cd/m2 |
|
Viewing angle |
140° H - 110° V |
|
Frequency range |
15-45 kHz horizontal, 50-75 Hz vertikal |
|
Connector |
IDC10 PIN ( HE10), IDC16 PIN (HE16), 5 BNC |
|
Menu settings |
Via OSD (On Screen Display) |
|
Front panel |
Frontal Lexan Protection |
|
Mechanical dimension |
100% compatible to the original |
|
Operating voltage |
100 - 240 VAC |
|
Operating temperature |
-10°C to 55°C |
|
Manufactured according to |
EN55022, EN55024 |
|
Product code: |
TOI10LB1-SIN3 |
