Siemens Sinumerik 840D - TFT-Ersatzmonitor
TOD10DA-A254
New
More info

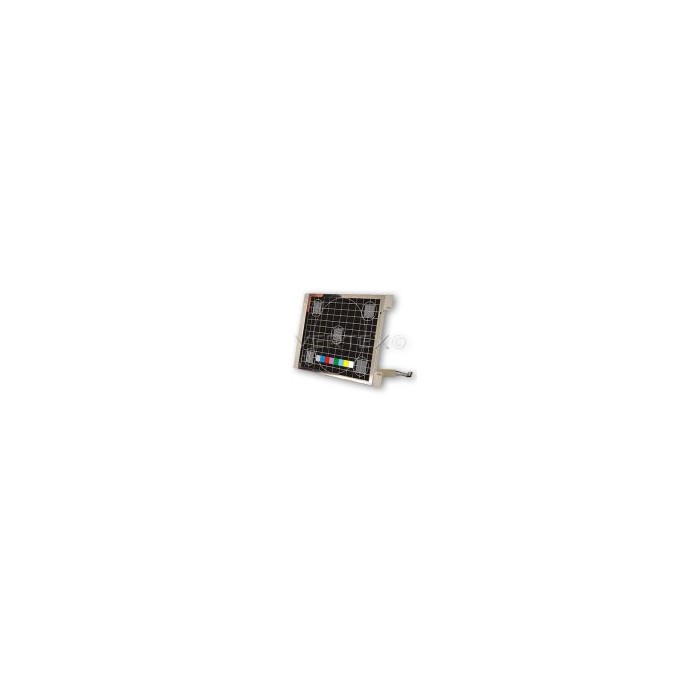

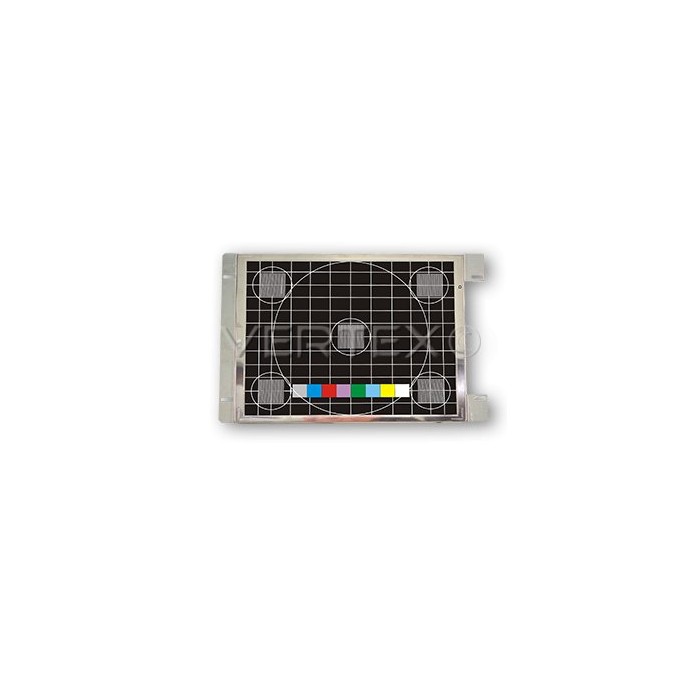

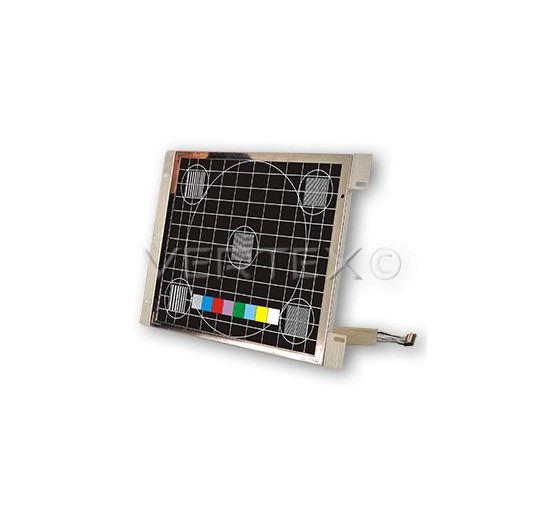

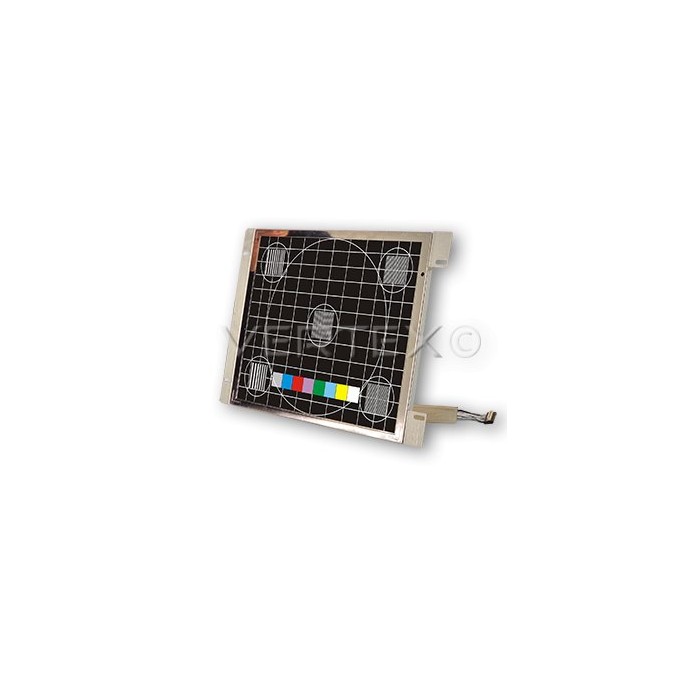

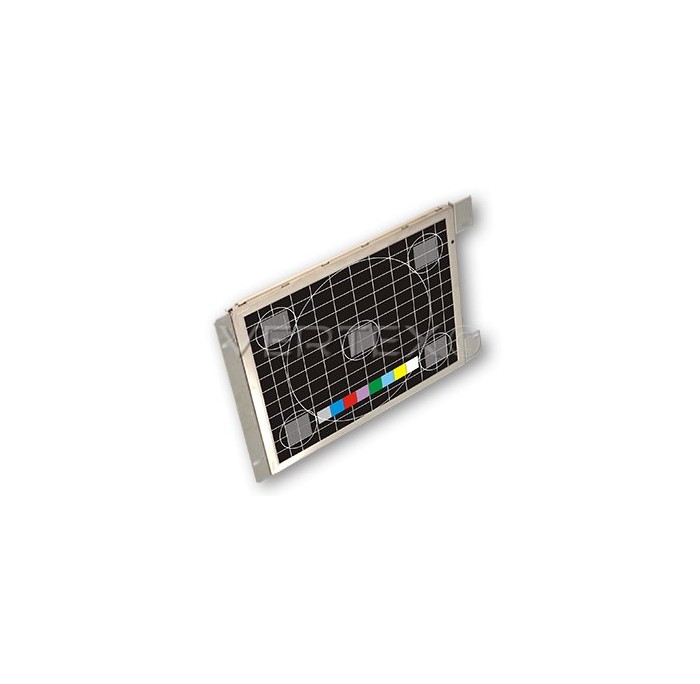

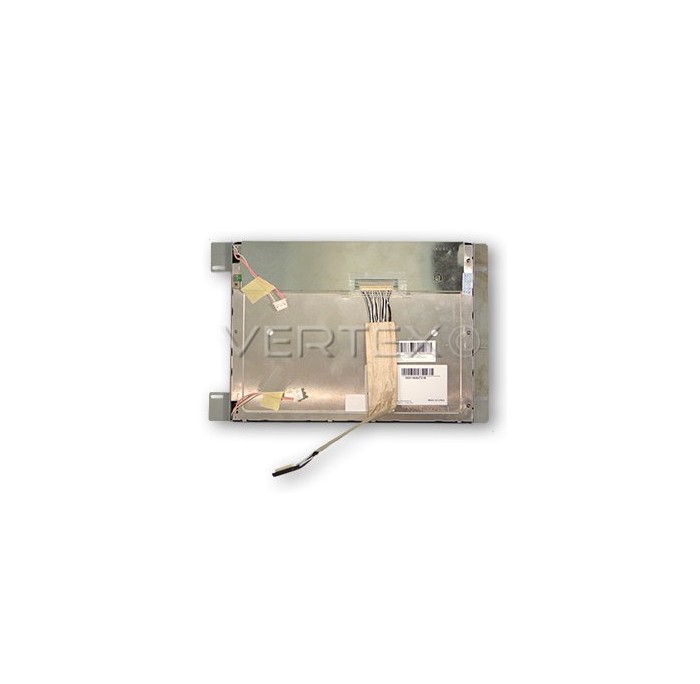

This 10“ TFT monitor has been developed as a replacement for the 10" LCD Panel Toshiba LTM10C209 mounted in Siemens Sinumerik 840D.
Our TFT is a Plug & Play solution, that means it is 100% compatible on the electrical and mechanical side.
This allows a quick and easy replacing without a specific technical knowledge and tooling.
|
Technical data: |
|
|
Operator panel / CNC |
Siemens Sinumerik 840D |
|
Monitor Code |
6FC5210 - 0DA20 - 2AA1 |
|
Display |
10“ TFT LCD active matrix / 800x600 |
|
Brightness |
300 cd/m2 |
|
Viewing angle |
120° H - 90° V |
|
Frequency range |
15-45 KHz horizontal, 50-75 KHz vertikal |
|
Connector |
IDC 16 PIN - IDC 10 PIN - BNC |
|
Menu settings |
Via OSD (On Screen Display) |
|
Front panel |
Frontal Lexan Protection |
|
Mechanical dimension |
100% compatible to the original |
|
Operating voltage |
100 - 240 Vac / 12Vdc (External Power Supply) |
|
Operating temperature |
-10°C to 55°C |
|
Manufactured according to |
EN55022, EN55024 |
|
|
|
|
Product code: |
TOD10DA-A254 |
