Num 750 - 760 (16 KHz) - CRT-Ersatzmonitor
10" CRT Industriemonitor als Ersatz für den 10" CRT Monochrom-Monitor verbaut in NUM 750 - 760 (16 KHz)Empfänger :
* Pflichtfelder
oder Abbrechen
Num 750 - 760 (16 KHz) - CRT-Ersatzmonitor
10" CRT Industriemonitor als Ersatz für den 10" CRT Monochrom-Monitor verbaut in NUM 750 - 760 (16 KHz)For questions regarding an order, thank you use the contact form
* Required fields
Cancel or

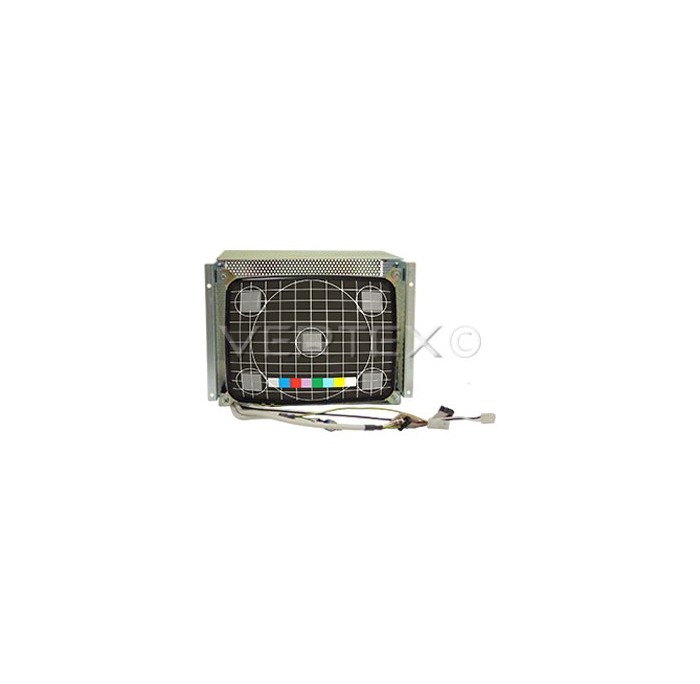

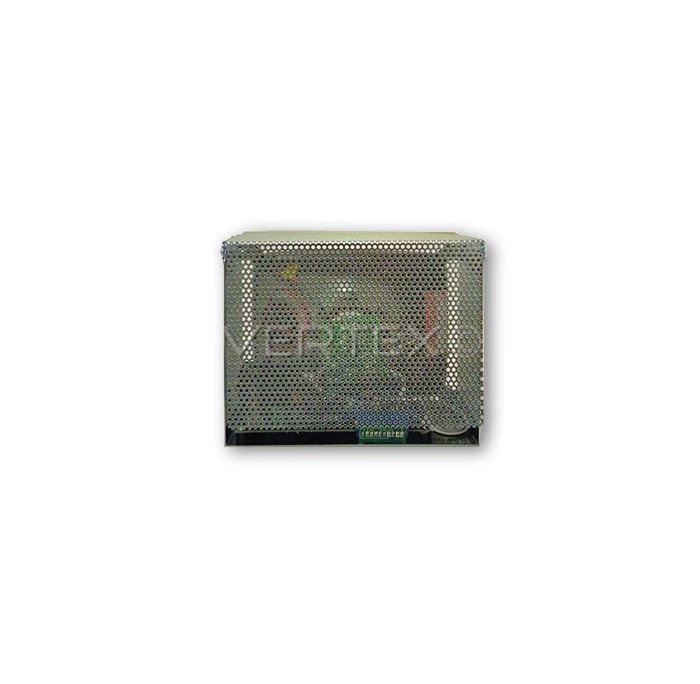

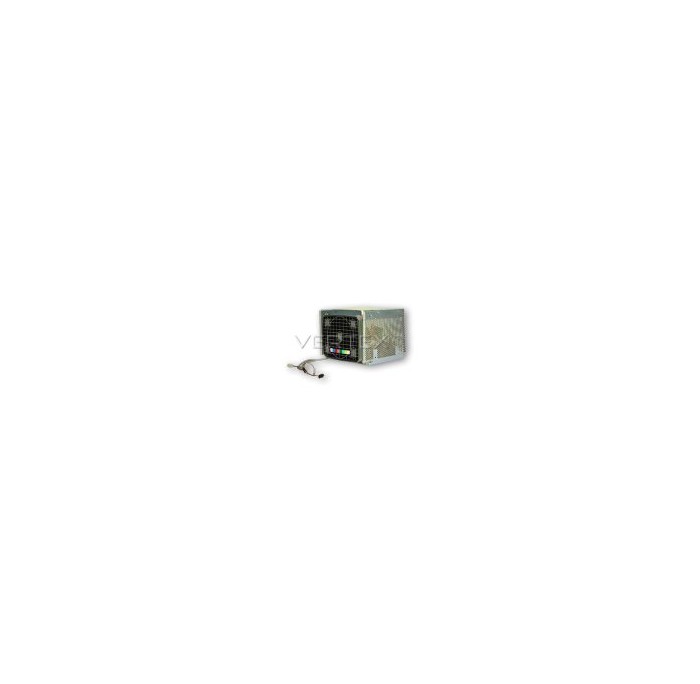

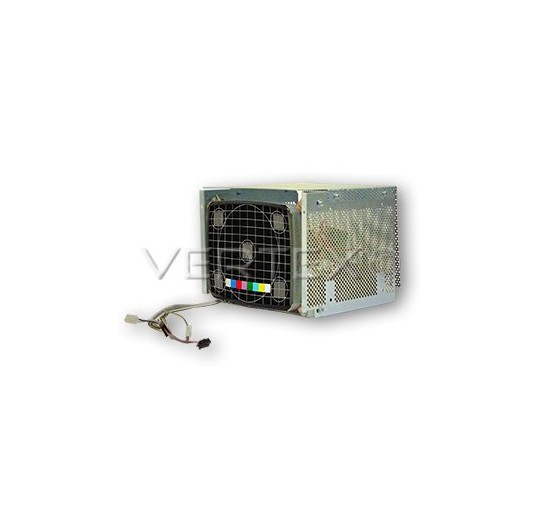

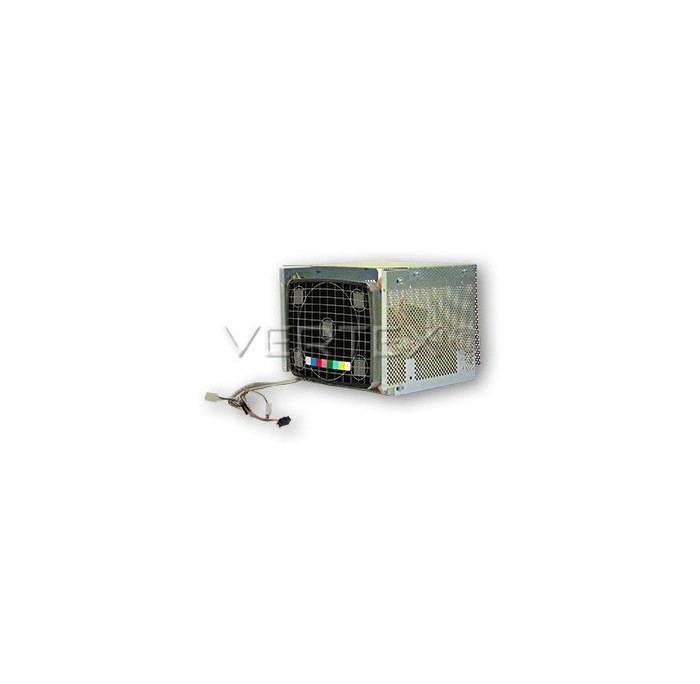

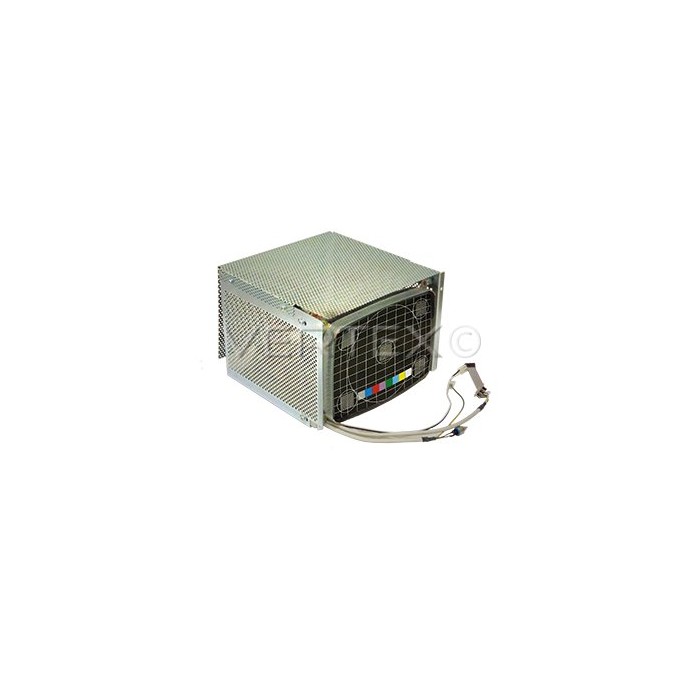

This 10“ CRT monitor has been developed as a replacement for the 10“ CRT Monochrom Monitor mounted in NUM 750 - 760 (16 KHz).
Our CRT is a Plug & Play solution, that means it is 100% compatible on the electrical and mechanical side.
This allows a quick and easy replacing without a specific technical knowledge and tooling.
Technical data: |
|
Operator panel / CNC |
NUM 750 - 760 (16 KHz) |
Display |
10“ CRT |
Frequency range |
15-45 kHz horizontal, 50-75 Hz vertikal |
Connector |
IDC 10 PIN F |
Mechanical dimension |
100% compatible to the original |
Operating voltage |
12 VDC |
Operating temperature |
-10°C to 55°C |
Manufactured according to |
EN55022, EN55024 |
|
|
Product code: |
CC10GG72A2-A251 |
