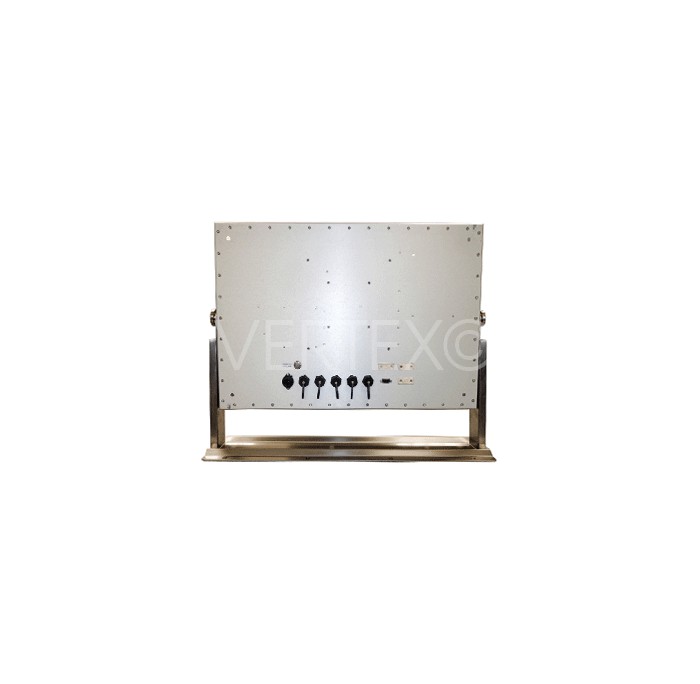

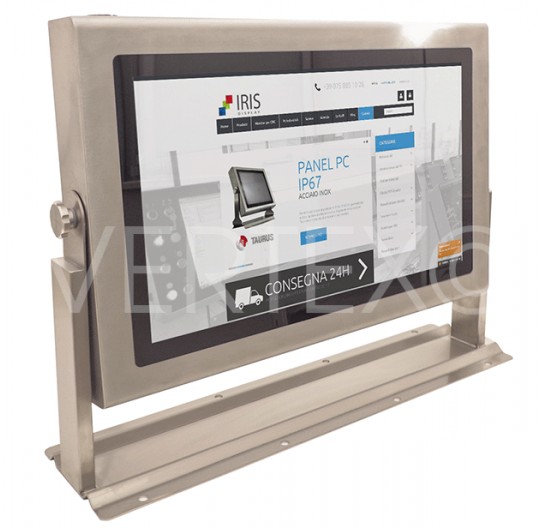

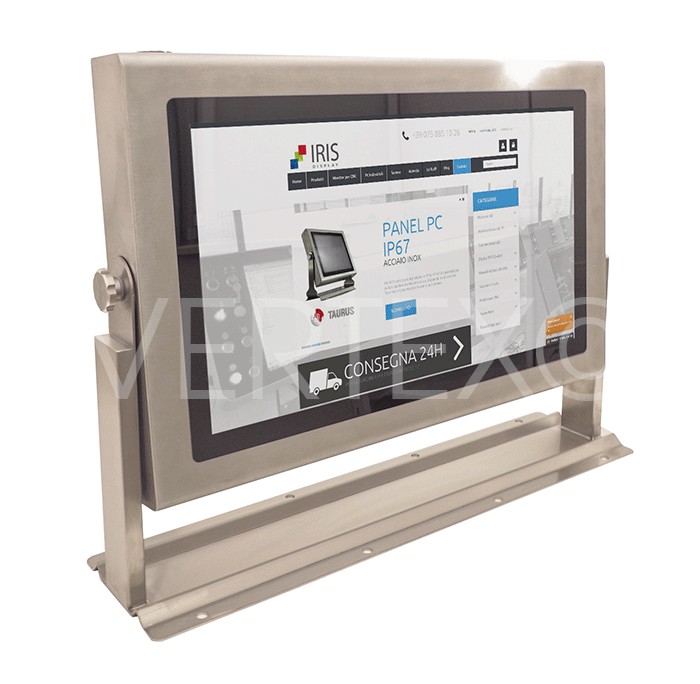

24" Taurus Panel-PC, geschützt nach IP67

Technical Data:

Lcd

24" SXGA / Pixel Resolution 1280x1024

300 cd/m2, optional 1000 cd/m2

Viewing Angle

178° H - 178° V

Connector

2 x RS-232 / 1 x RS-232/422/485 / 1 x LAN / 4 x USB

Optional Connector

VGA / RSR232 / LAN

Power Supply

110/240 Vac - 50/60 Hz

Touch Screen

Resistive 5 wires USB/RS232, optional PCT MULTITOUCH

Certification

CE/FCC Class A

Dimension

660 (w) x 430  (h) x 79,5 (d)

Operating Temperature

0 °C - 55°C

Case / IP Class

Stainless Steel V4A , IP65/IP67

CPU available

N2600 (1,6 GHz) N2800/ D2550(1,86 GHz) i3 (Dual core 2,4 GHz) i5 (Dual core 2,5 GHz) N2930 (1.83GHz)

Chipset

Intel® NM10 EXPRESS Intel ® NM10 EXPRESS Intel ® QM77 Intel bay trail

Memory

DDR 3 max 2 GB DDR 3 max 4 GB DDR3 max 8GB DDR 3 max 8 GB

Storage

2.5" Hard Disk SSD Module

Expansion Bus

Mini PCI-E

Operating System

- Windows XP pro for Embedded

- Windows 7 for Embedded

- Windows Embedded Standard 7

- Windows XP Embedded

- Embedded Linux, Real-time Kernel

Optional

- PCT Multitouch

- Operating Temperature:  -20° C bis 70 °C

- DVI

- Additional I/O Ports RS232 / LAN / USB

- High-Brightness Display (1500 Cd./m²), Bonding

- TRUE FLAT. Total smooth surface

- I/O Port: Video (BNC)

- Wall brackets, Pedestals and Desktop

- WLAN with IP65 Antenna

- Power Supply 24 VDC / 100-240 VAC with external or internal adapter

Product Code.:

TSI24TE2
