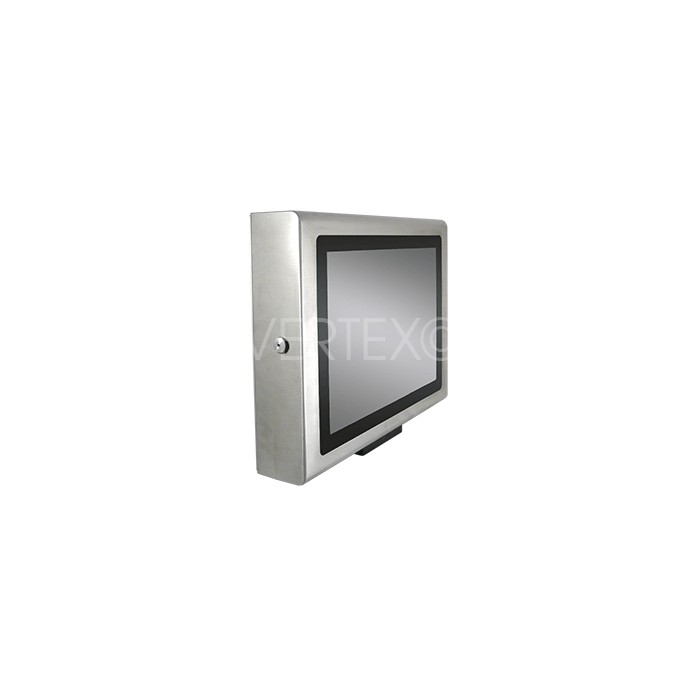

17" Taurus Panel-PC, geschützt nach IP67

Technical Data:

Lcd

17" SXGA / Pixel Resolution 1280x1024

300 cd/m2, optional 1500 cd/m2

Viewing Angle

140° H - 130° V

Connector

2 x RS-232 / 1 x RS-232/422/485 / 1 x LAN / 2 x USB

Optional Connector

VGA / RSR232 / LAN

Power Supply

110/240 Vac - 50/60 Hz

Touch Screen

Resistive 5 wires USB/RS232, optional PCT MULTITOUCH

Certification

CE/FCC Class A

Dimension

436,9 (w) x 369,3  (h) x 84,7 (d) / 10 kg

Operating Voltage

0 °C - 55°C

Case / IP Class

Stainless Steel V4A , IP65/IP67

CPU available

INTEL® Cedar Trail-M Atom Processor N2600 (Dual core 1.6GHz)

Chipset

INTEL® NM10 Express

Memory

2 GB DDR3 SO-DIMM

Storage

2.5" Hard Disk SSD Module

Expansion Bus

Mini PCI-E

Operating System

- Windows XP pro for Embedded

- Windows 7 for Embedded

- Windows Embedded Standard 7

- Windows XP Embedded

- Embedded Linux, Real-time Kernel

Optional

- PCT Multitouch

- Operating Temperature:  -20° C bis 70 °C

- DVI

- Additional I/O Ports RS232 / LAN / USB

- High-Brightness Display (1500 Cd./m²), Bonding

- TRUE FLAT. Total smooth surface

- I/O Port: Video (BNC)

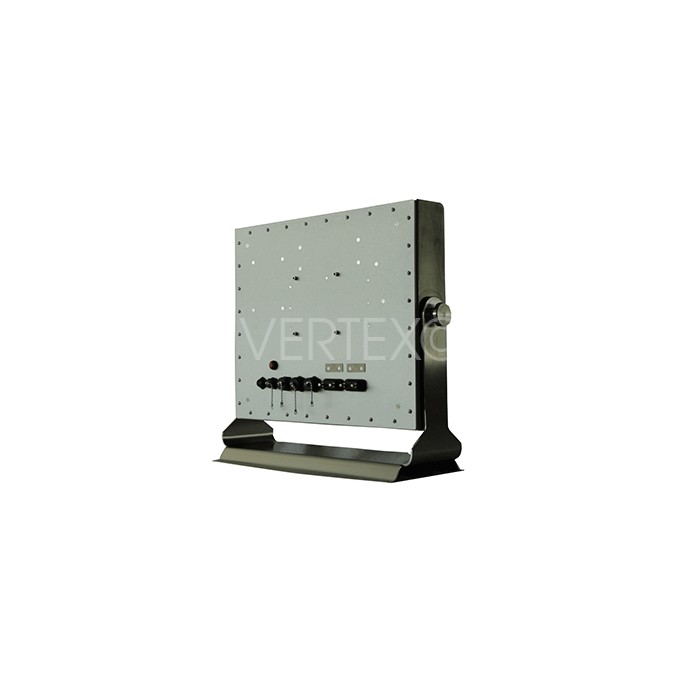

- Wall brackets, Pedestals and Desktop

- WLAN with IP65 Antenna

- Power Supply 24 VDC / 100-240 VAC with external or internal adapter

Product Code.:

TSI17TE2
