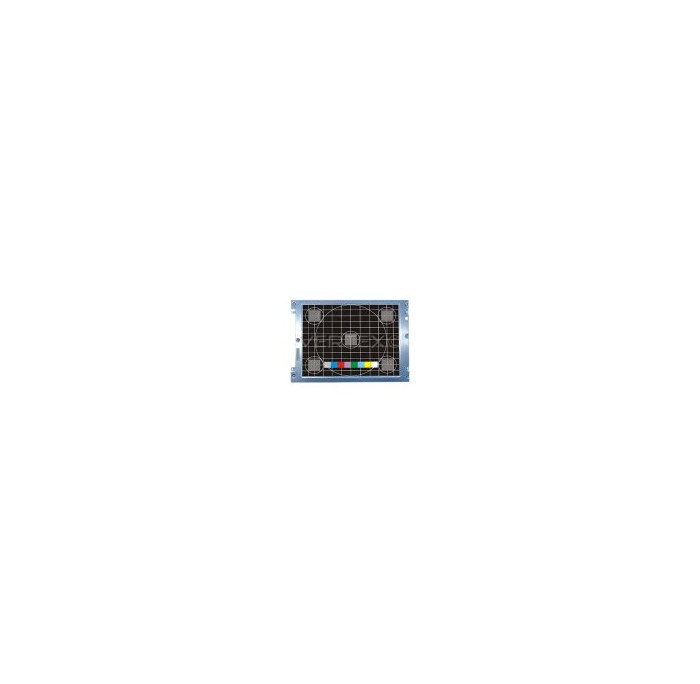

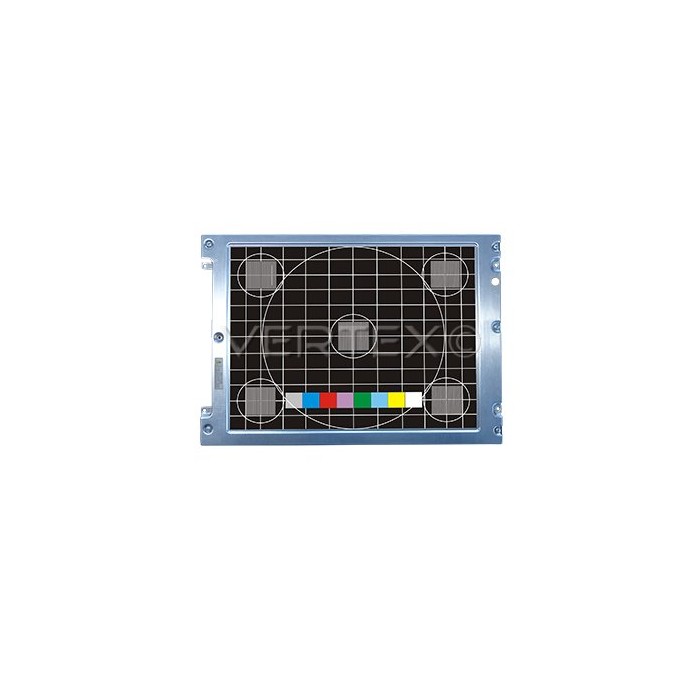

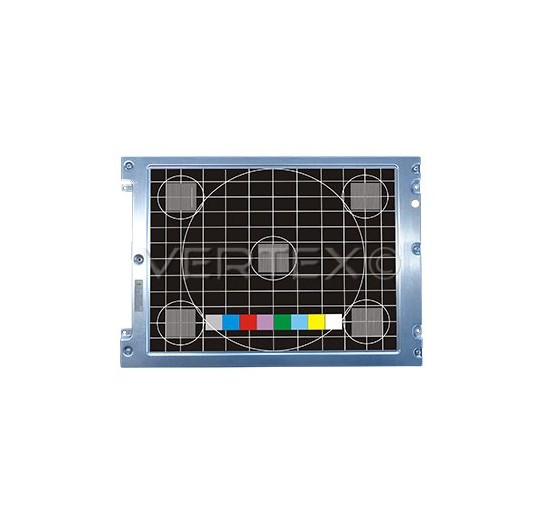

Siemens MP370 - TFT-Ersatzdisplay
15" TFT Ersatz-Display für Siemens MP370Empfänger :
* Pflichtfelder
oder Abbrechen
Siemens MP370 - TFT-Ersatzdisplay
15" TFT Ersatz-Display für Siemens MP370For questions regarding an order, thank you use the contact form
* Required fields
Cancel or
Technical data: |
|
Operator panel / CNC |
Siemens MP370 |
Display |
12.1"“ TFT LCD active matrix / 1024x768 |
Brightness |
250 cd/m2 |
Viewing angle |
140° H - 110° V |
Frequency range |
15-45 KHz horizontal, 50-75 KHz vertikal |
Contrast |
400:1 |
Menu settings |
Via OSD (On Screen Display) |
Front panel |
Frontal Lexan Protection |
Mechanical dimension |
100% compatible to the original |
Dimension |
347.3x263.5x15.8 mm |
Operating temperature |
-10°C to 55°C |
Manufactured according to |
EN55022, EN55024 |
|
|
Product code: |
WI2404 |
