TOI12LB1-A197
New
Availability date:
Osai H2 - TFT-Ersatzmonitor
12" TFT Industriemonitor als Ersatz für den 14" CRT Farbmonitor verbaut in Osai H2Empfänger :
* Pflichtfelder
oder Abbrechen
Osai H2 - TFT-Ersatzmonitor
12" TFT Industriemonitor als Ersatz für den 14" CRT Farbmonitor verbaut in Osai H2For questions regarding an order, thank you use the contact form
* Required fields
Cancel or

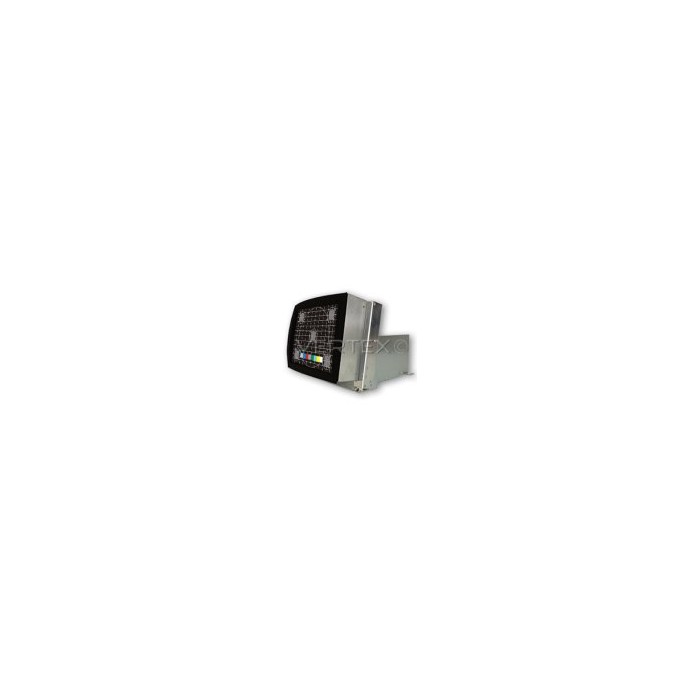

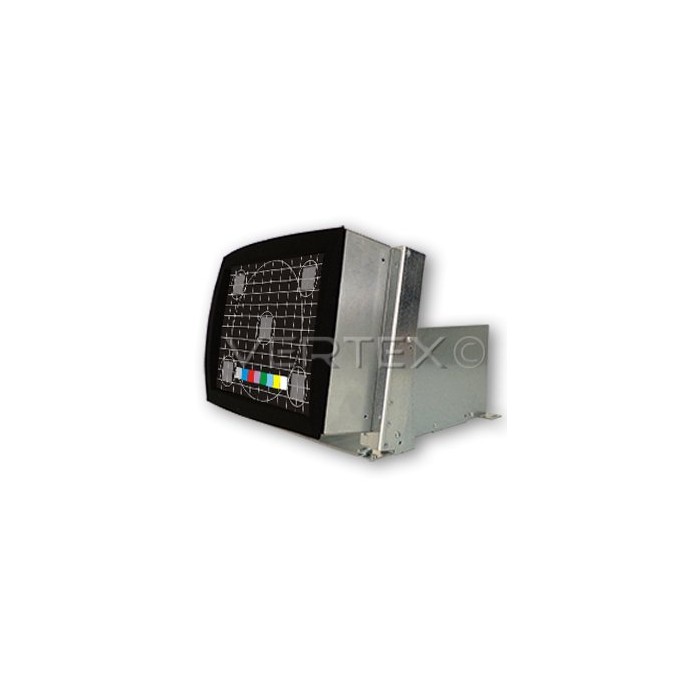

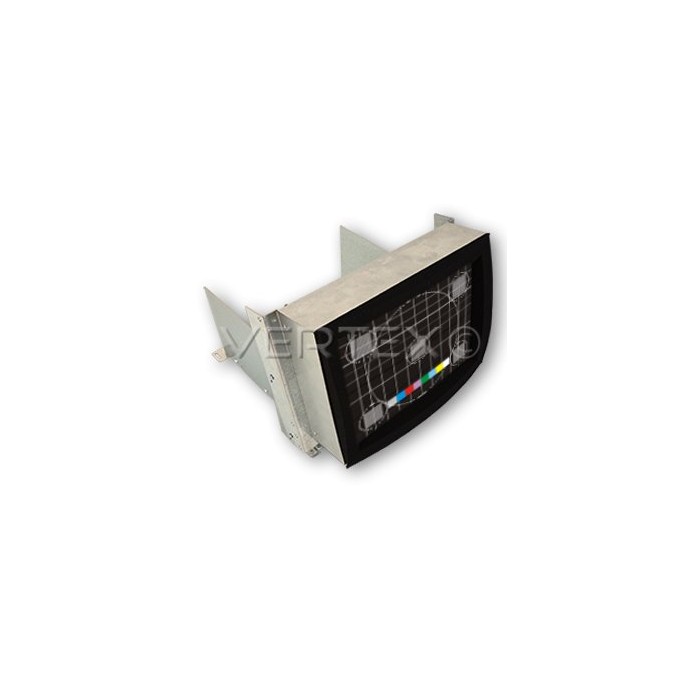

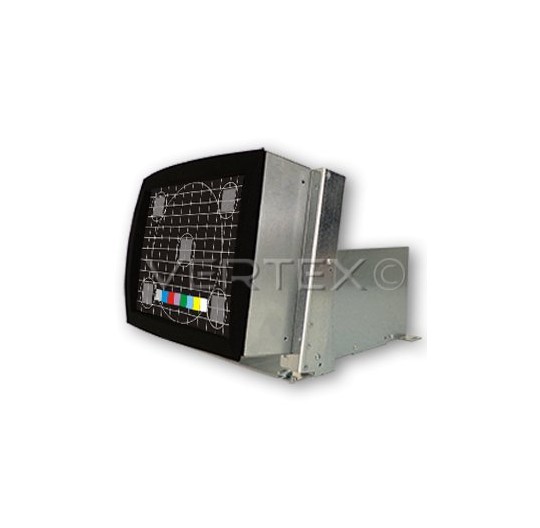

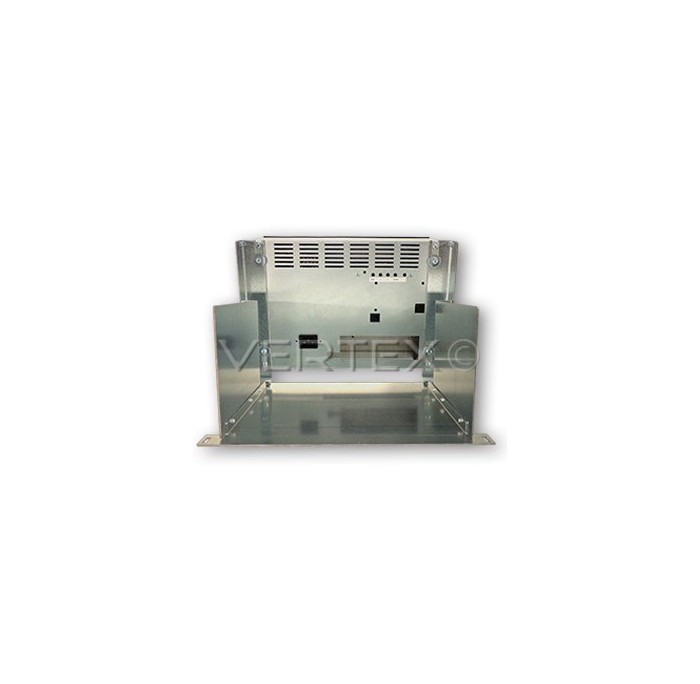

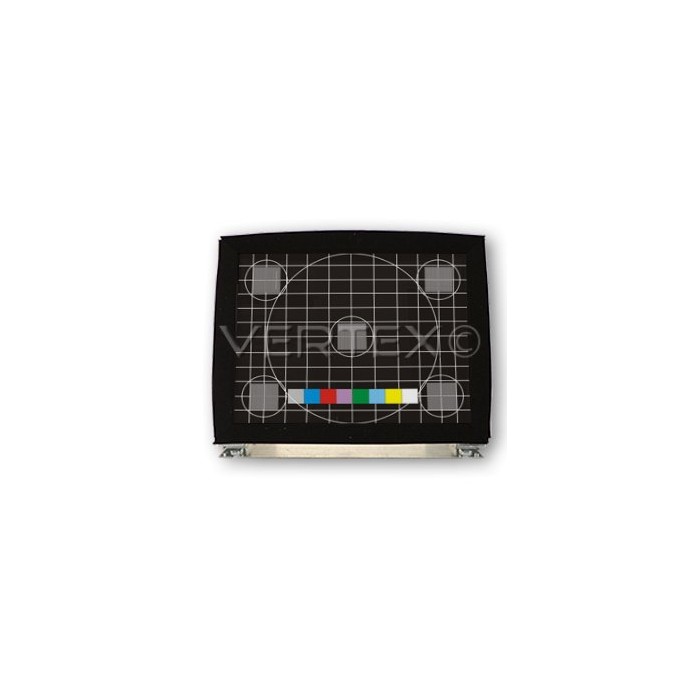

This 12“ TFT monitor has been developed as a replacement for the 14“ CRT Color Monitor mounted in Osai H2.
Our TFT is a Plug & Play solution, that means it is 100% compatible on the electrical and mechanical side.
This allows a quick and easy replacing without a specific technical knowledge and tooling.
Technical data: |
|
Operator panel / CNC |
Osai H2 |
Original Monitor Code |
Hantarex 1428 SE |
Display |
12“ TFT LCD active matrix / 800x600 |
Brightness |
300 cd/m2 |
Viewing angle |
140° H - 110° V |
Frequency range |
15-45 kHz horizontal, 50-75 Hz vertikal |
Connector |
HD 15 |
Menu settings |
Via OSD (On Screen Display) |
Front panel |
Frontal Lexan Protection |
Mechanical dimension |
100% compatible to the original |
Operating voltage |
100 - 240 VAC |
Operating temperature |
-10°C to 55°C |
Manufactured according to |
EN55022, EN55024 |
|
|
Product code: |
TOI12LB1-A197 |
