Mitsubishi Meldas 520 - TFT-Ersatzmonitor
TOI8LB3-A849
New
More info

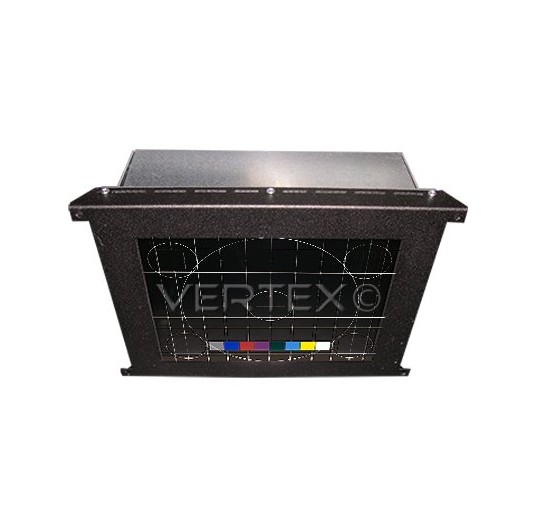

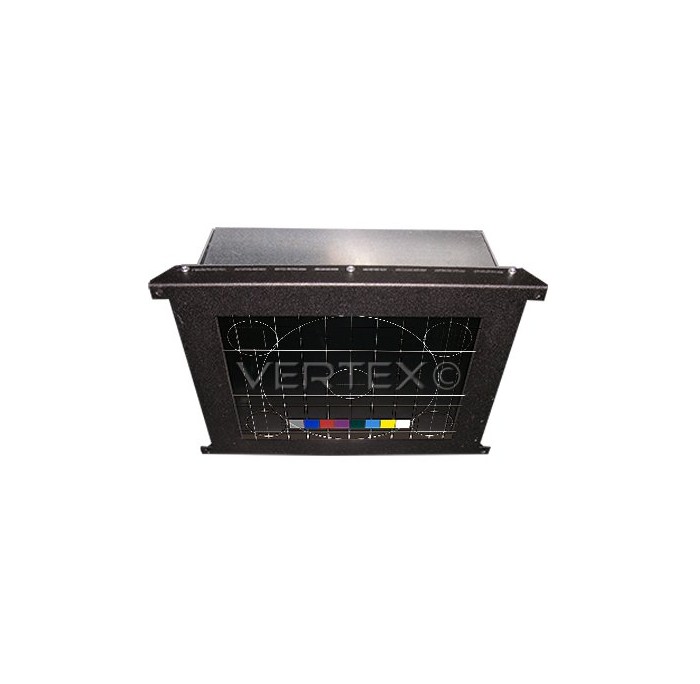

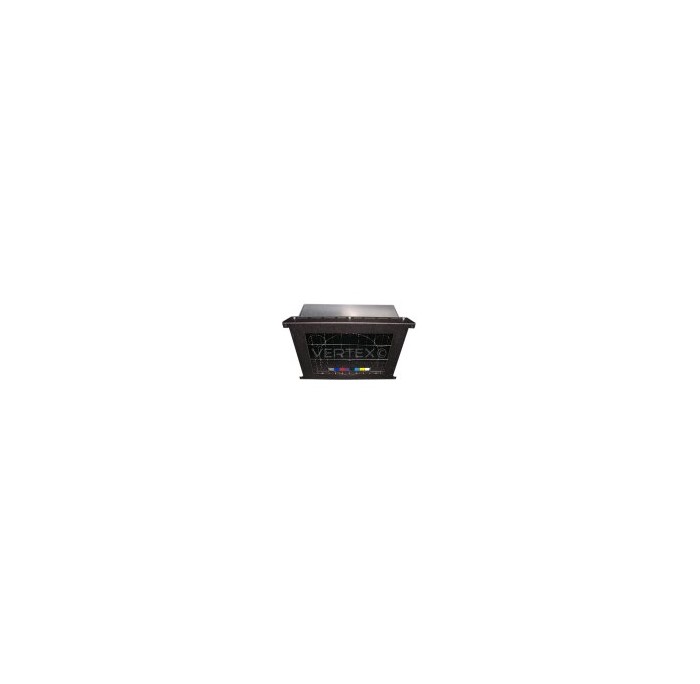

This 8“ TFT monitor has been developed as a replacement for the 10“ CRT Monitor mounted in Mitsubishi Meldas 520 .
Our TFT is a Plug & Play solution, that means it is 100% compatible on the electrical and mechanical side.
This allows a quick and easy replacing without a specific technical knowledge and tooling.
|
Technical data: |
|
|
Operator panel / CNC |
Mitsubishi Meldas 520 |
|
Original Monitor Code |
SHARP LJ640U48 |
|
Display |
8“ TFT LCD active matrix / 800x600 |
|
Brightness |
300 cd/m2 |
|
Viewing angle |
140° H - 120° V |
|
Frequency range |
15-45 kHz horizontal, 50-75 Hz vertikal |
|
Connector |
MAZAK 15 PIN |
|
Menu settings |
Via OSD (On Screen Display) |
|
Front panel |
Frontal Lexan Protection |
|
Mechanical dimension |
100% compatible to the original |
|
Operating voltage |
12 VDC |
|
Operating temperature |
-10°C to 55°C |
|
Manufactured according to |
EN55022, EN55024 |
|
|
|
|
Product code: |
TOI8LB3-A849 |
