TFT monitor for Mitsubishi EUM1481 / AUM 1391 / AUM1981

View larger

Mitsubishi EUM1481 / AUM 1391 / AUM1981 - TFT-Ersatzmonitor

Model TDI15LC1-A598

Condition New

15" TFT Industriemonitor als Ersatz für den 14" CRT Farbmonitor verbaut in Mitsubishi EUM1481 / AUM 1391 / AUM1981 (Original Monitor)

More details

An einen Freund senden

An einen Freund senden

Mitsubishi EUM1481 / AUM 1391 / AUM1981 - TFT-Ersatzmonitor
15" TFT Industriemonitor als Ersatz für den 14" CRT Farbmonitor verbaut in Mitsubishi EUM1481 / AUM 1391 / AUM1981 (Original Monitor)

Empfänger :

Name Ihrer/es Freundin/es ^* :

E-Mailadresse Ihres Freundes ^* :

^* Pflichtfelder

oder Abbrechen

More info

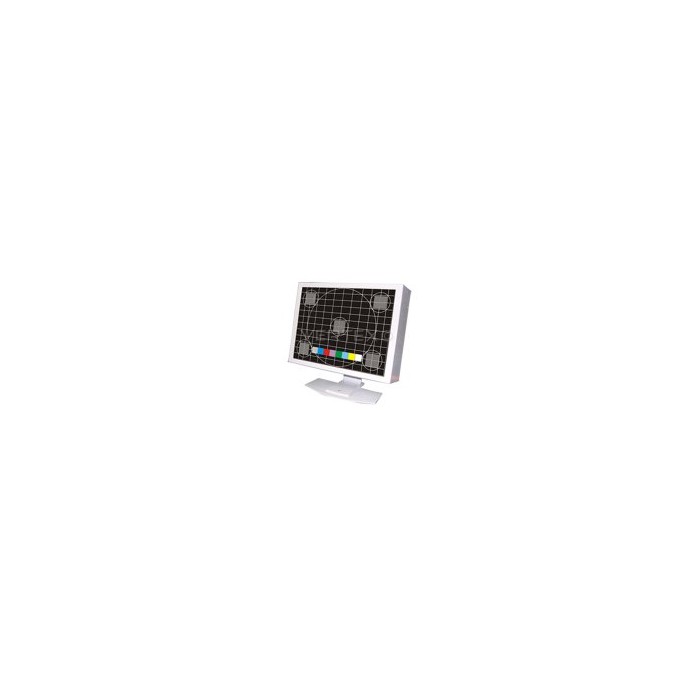

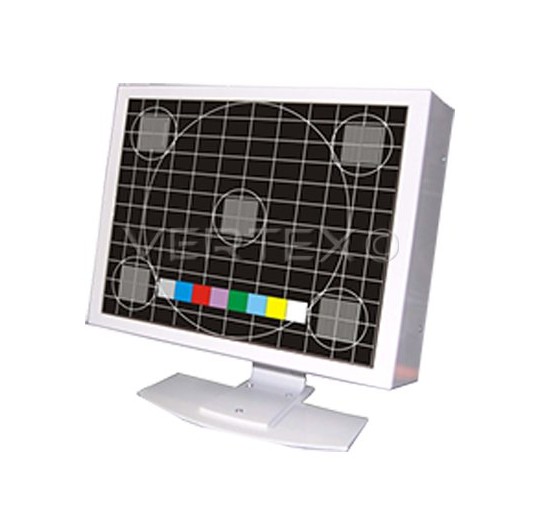

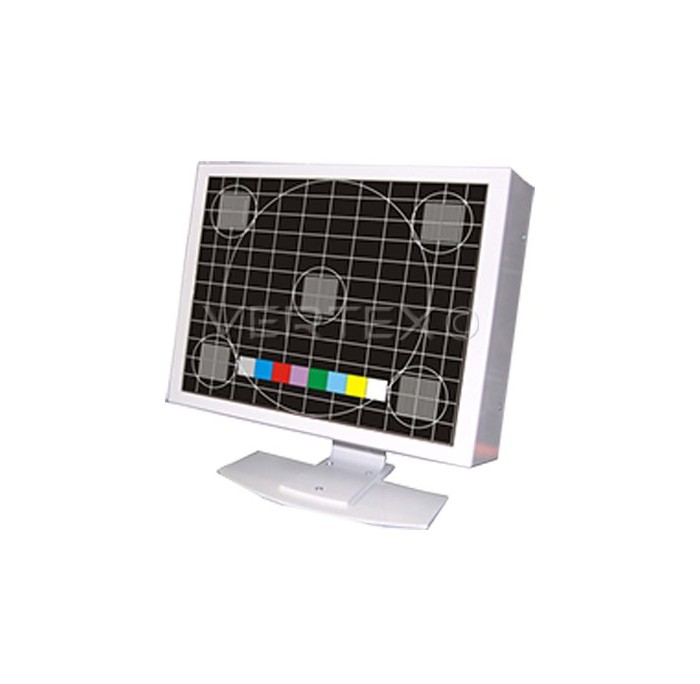

This 15“ TFT monitor has been developed as a replacement for the 14“ CRT Color Monitor mounted in Mitsubishi EUM1481 / AUM 1391 / AUM1981 (Original Monitor) .

Our TFT is a Plug & Play solution, that means it is 100% compatible on the electrical and mechanical side.

This allows a quick and easy replacing without a specific technical knowledge and tooling.

Technical data:
Operator panel / CNC
Original Monitor Code	EUM1481 / AUM 1391 / AUM1981
Display	15“ TFT LCD active matrix / 1024x768
Brightness	300 cd/m2
Viewing angle	140° H - 125° V
Frequency range	15-45 kHz horizontal, 50-75 Hz vertikal
Connector	SUB D 15 - HD 15 F - DB9
Menu settings	Via OSD (On Screen Display)
Front panel	Frontal Lexan Protection
Mechanical dimension	100% compatible to the original
Operating voltage	12 VDC
Operating temperature	-10°C to 55°C
Manufactured according to	EN55022, EN55024

Product code:	TDI15LC1-A598
