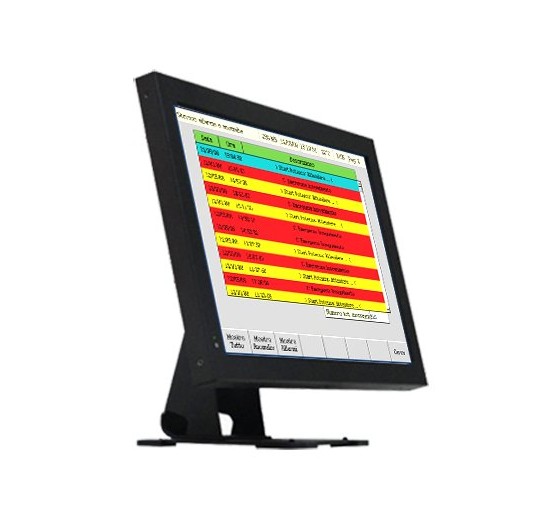

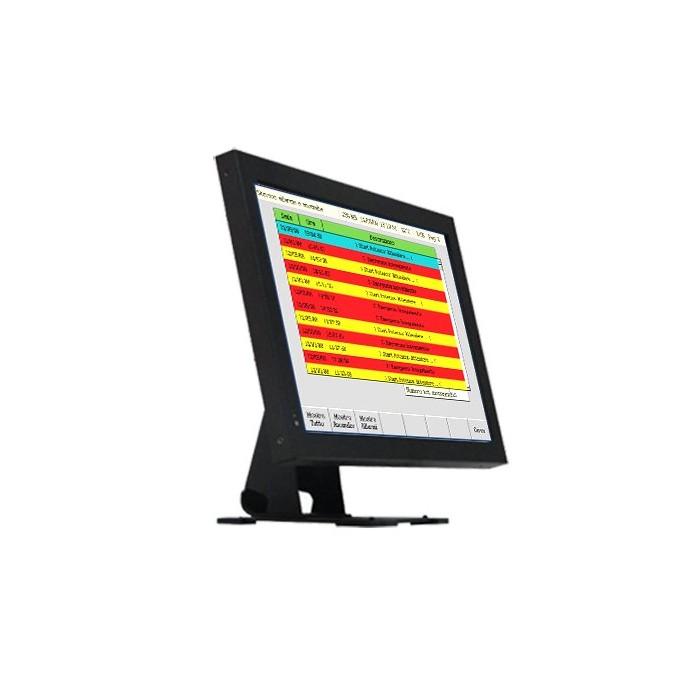

19" Stabilis Desktop-Panel-PC
19" Stabilis Desktop-Panel-PC für industrielle Anwendungen , Maschinensteuerungen, Gebäudeautomation und Digital-Signage.Empfänger :
* Pflichtfelder
oder Abbrechen
19" Stabilis Desktop-Panel-PC
19" Stabilis Desktop-Panel-PC für industrielle Anwendungen , Maschinensteuerungen, Gebäudeautomation und Digital-Signage.For questions regarding an order, thank you use the contact form
* Required fields
Cancel or
Technical Data: |
|
Lcd |
19" WXGA+ / Pixel Resolution 1440 x 900 |
Brightness |
300 cd/m2 |
Viewing Angle |
170° H - 160° V |

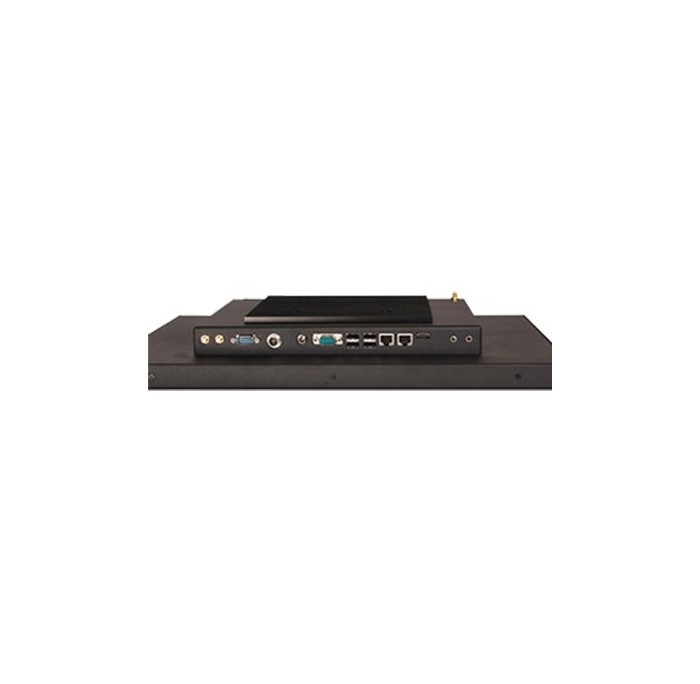

Exernal Connector |
2 x W-LAN / 1 x RS-232/422/485 / 1 x HDMI / 4 x USB |
I/O Connector |
1 x VGA / 3 x RSR232 / 1 x USB |
Power Supply |
100-240V ACDC active switching Power Supply, 12V DC-Out |
Touch Screen |
Resistive 4 wires / USB-Touch-connector (PC internal connected) |
Dimension |
46.8 x 31.4 x 6.25 |
Operating Temperature |
0 °C - 60°C |
Case / IP Class |
IP40 |
CPU available |
INTEL® Atom Processor N2600 (optional N2800) |
Chipset |
INTEL® NM10 |
Memory |
2 GB DDR3 SO-DIMM |
Storage |
2.5" Hard Disk SSD Module |
Expansion Bus |
2 x Mini Card slots with PCIe and USB interface |
Operating System
|
- Windows XP - Windows 7 - Windows 8 - Linux
|
Optional |
- IP65 / IP68 - Customizable connections (External I/O-ports) - High Brightness (up to 1000NITS) - Webcam, Scanner, Printer, RFID- Advanced RAM and SSD - N270, D525, N2600 or i3/i5 CPU - Customizable cables
|
