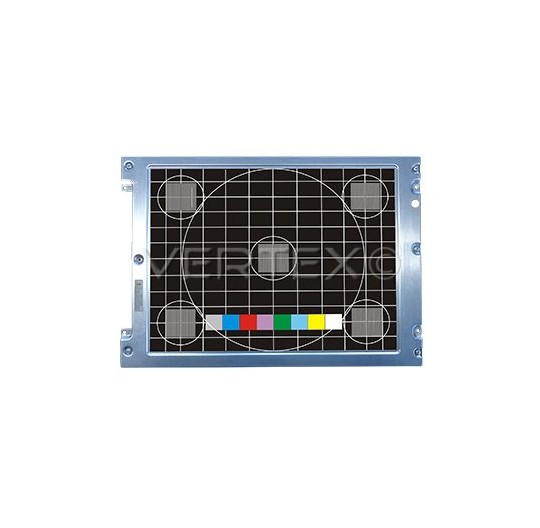

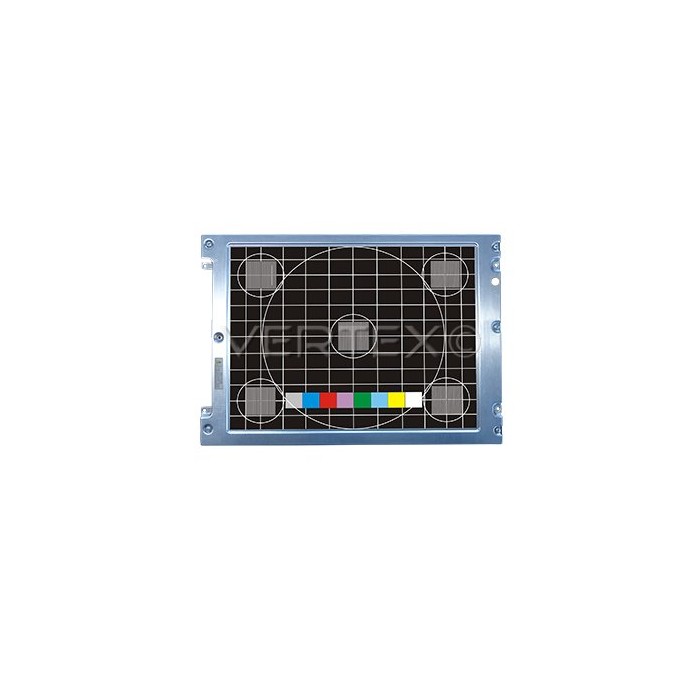

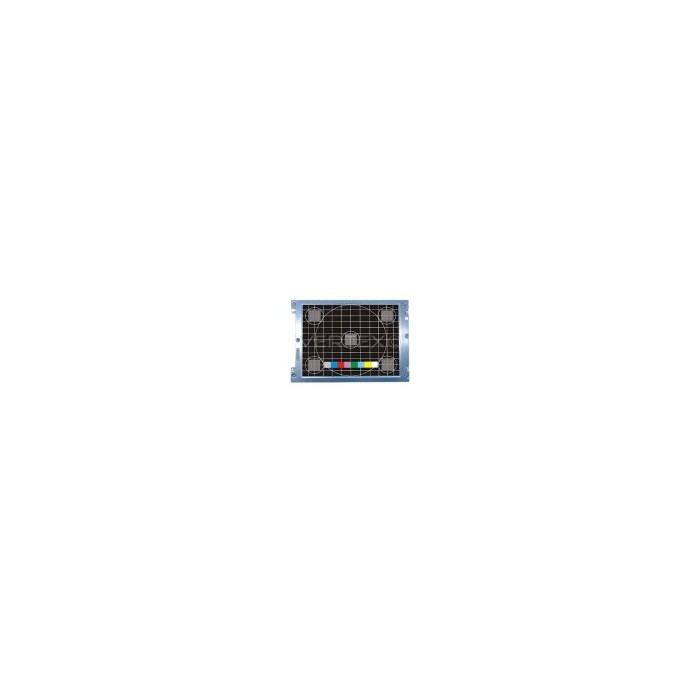

TFT Display CMO M170E5 L0C - TFT-Display
Ersatz-Display für 17" TFT Display CMO M170E5 L0C. Das Display unterstützt das SXGA-Bildschirm-Format, RGB 8-Bit-Daten. Das Eingangssignal ist mit einer LVDS-Schnittstelle kompatibel.Empfänger :
* Pflichtfelder
oder Abbrechen
TFT Display CMO M170E5 L0C - TFT-Display
Ersatz-Display für 17" TFT Display CMO M170E5 L0C. Das Display unterstützt das SXGA-Bildschirm-Format, RGB 8-Bit-Daten. Das Eingangssignal ist mit einer LVDS-Schnittstelle kompatibel.For questions regarding an order, thank you use the contact form
* Required fields
Cancel or
Technical data: |
|
Screen Diagonal |
17" - 41 cm diagonal |
Outline dimension |
358.5 x 296.5 mm |
Display Area |
337.92 (H) x 270.336 |
Resolution |
1280 x 1024 |
Viewing angle |
170° H - 160° V |
Brightness |
300 cd/m2 |
Electrical Interface |
LVSD |
Operating temperature |
0°C to 50°C |
